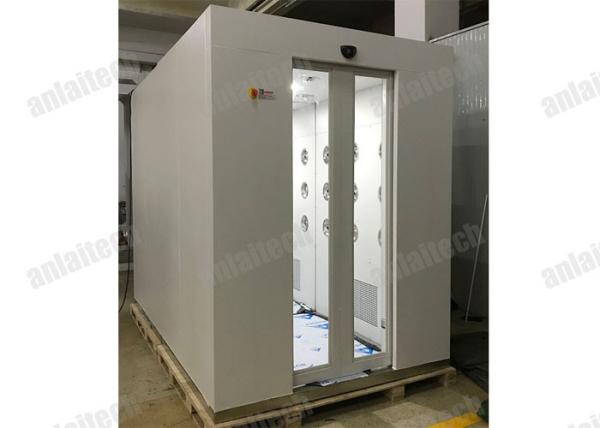

Automatic door clean room air showerroom with HEPA FILTER

anlaitech Air Showers provide a rapid, effective means to reduce dust contamination from individuals’ clothing when entering or leaving a clean area. Air Shower Tunnels are protected passageways that allow large numbers of personnel to rapidly transit into controlled areas.
Air Showers and Tunnels supply high volumes of recirculated, dust free air to lift contaminants from personnel, while they stand, or walk through the specially constructed chamber.
Air flows through pressurized directional nozzles at velocities up to 10,000 feet per minute. The clean, dust free, high velocity air provides efficient scrubbing action to remove particulates from work clothes and protective equipment.
The contaminants are directed downwards through the grilles and hollow walls of the Air Shower and then is filtered through HEPA filters and the air is recirculated.



Air Shower Standard Features:

Main body construction:heavy gauge Steel Plate with powder coating, and with stainless steel floor to minimize particle generation.

Mechanical or electrical interlock:helps preventing premature or mistaken opening of the pressure-sealed doors.

An Emergency Stop push button:will override the operating cycle to release the door locks immediately.

A power failure safety function:the door locks will open automatically, while power is fail accidentally, to protect workers from dangers.

Interior fluorescent lamp and flush windows:for best visibility and safety.

All units come standard with Programmable microprocessor control, touch panel, and timer w/LED Display.

With Auto, Stop, Manual, Emergency Stop function keys.

W/ Running, or Air Shower Clean Mode indicators fitted on FRT & RR door.

An optional timer, which deactivates interlock system 5 seconds after air shower clean mode finished, is available.

Audio system is available for an option.

Custom sizes are possible.
Automatic sliding door Air Shower Specifications:
