Specifications
Brand Name :
anlaitech
Model Number :
AL-MODULAR CLEAN ROOM
Certification :
CE , FAT, CLASS REPORT
Place of Origin :
CHINA
MOQ :
1set of china clean room
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
12WORKING DAYS.
Packaging Details :
standard exporting packing for clean room china
Name :
3600m3/H ISO8 Portable Clean Rooms No Dust Prefabricated Easy Clean Panels 62db
Material :
Sandwich panel stainless steel /Painted steel+plexiglass
Product Name :
clean room, lab clean room, modular clean room, cleanroom
Application :
lab clean room, optics clean room, electronical clean room,Pharmaceutical clean room..etc
Function :
Laminar Air Flow System
Product name :
ISO4-8 Cleanroom project
Description

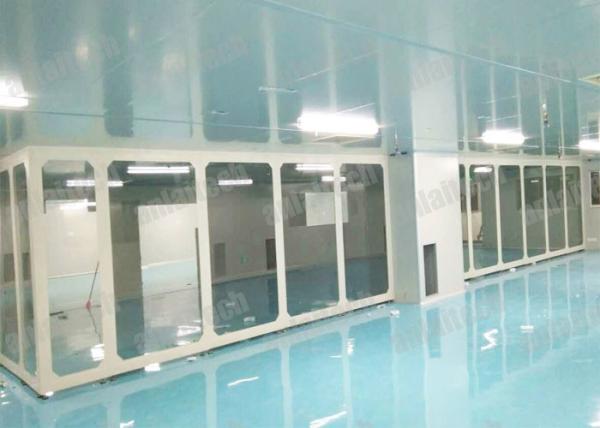

No dust prefabricated portable clean room with easy clean panels

Clean Room is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand. That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.

3600m3/H ISO8 Portable Clean Rooms No Dust Prefabricated Easy Clean Panels 62db

Application

Electronic plant, national defense, precision instruments, food processing, pharmacy, chemical, agricultural, biological, other industrial departments and all kinds of scientific laboratory, etc.
3600m3/H ISO8 Portable Clean Rooms No Dust Prefabricated Easy Clean Panels 62db
Specification
Model item
ISO 7 CLEAN ROOM
AL-CS4*6/C7
AL-CS5*10/C7
AL-CS6*12/C7
AL-CS7*20/C7
Size(mm)
4000*6000*2500
5000*10000*2500
6000*12000*2500
7000*20000*2500
Material
Framework
Cold rolled steel /Aluminum/Stainless steel/sandwich panel
Around
Plexiglass,Soft curtain,Anti-static strip curtain/sandwich panel
Clean Class Level
10000
10000
10000
10000
HEPA filter
Size(mm)
610*610*69
1220*610*69
1220*610*69
1220*610*69
Efficiency(%)
99.99
99.99
99.99
99.99
Air flow (m3/h)
3600
7500
10800
21000
Pre filter
Size(mm)
Optional
Motor Spec
Power supply
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz
Noise(dB)
62
63
62
63

What We Can Do For You?

Front end consultancy support, Concept design and engineering.

Clean room design and construction.

Unique range of clean room modular walls and ceilings, flooring system.

Cleanroom accessories (pass boxes, step over benches, change room furniture and fittings, sampling and dispensing booths, air showers, etc.) GRP clean room doors.

Equipment selection ,Validation master plans, protocols and continuous monitoring systems regulatory advise.

HVAC Design and Installation.
