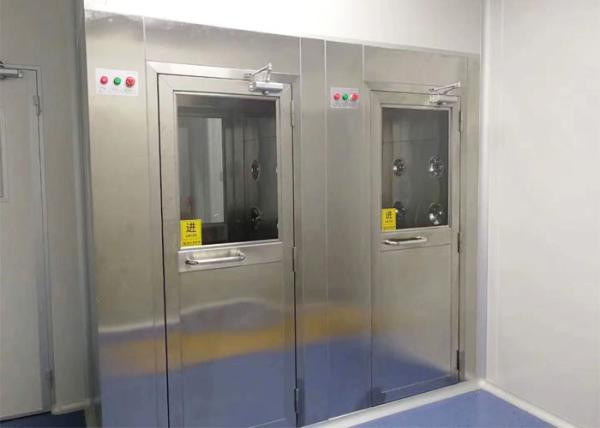

1300*1500*2180mm Best sold Factory Price Air shower for Clean room

AIR SHOWERProduct Introduction:

Air shower is a necessary passage for person or goods entering into the clean room in order to minimize the amount of particulate contaminants. Personnel move through the air shower while particulate contaminants are blew off by the clean high velocity. The high air velocity of 25m/s ensures the efficiency. Contaminated air is then taken in through the base of the unit, filtered and re-circulated into the chamber.

ANALITECH is leader in air shower for demanding application in the micro-electronics, semiconductors, pharmaceutical, spray-painting, lab, animal research and food market.

Feature:

1. Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3. Floor and nozzles are made of quality stainless steel.
4. 99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
5. Air velocity can up to 25m/s. professional and fast design, non-standard products.

1. External size (W*D*H) : 1300mm*1500mm*2180mm;Air shower area size (W*D*H) : 800mm*1430mm*1960mm;

2. Nozzle: full rust steel embedded 16;

3. Ventilation times: 600 times/hour;

4 wind speed: 25-30m /s;

5. Control system: PLC control, micro touch button switch, LED display blowing time (adjustable 0-99s), South Korea Autonics infrared sensor, automatic blowing, intelligent voice prompt;

6 filter efficiency: high efficiency filter 99.99%(0.3um);Initial filter 35% (5um);

7. Main material of box body: 1.5mm cold-rolled steel plate (electrolytic plate), surface electrostatic spraying treatment;

8. Door: Made of all-rust steel (SUS304) with glass window;Equipped with OUBAO door closers, automatic closure;

9. Door interlocking mode: two doors lock at the same time when the air shower;Usually the electronic interlock, only one of the doors can be opened;

10. Lighting: 20W PHILIPS fluorescent lamp;

11. Power supply: 380V 50HZ;

12. Power: 1.12KW;

13. Weight: about 420Kg;
