2500mm Height 7500m3/H Medical Clean Room Easy Prefabricated ISO Class 7 50Hz
2500mm Height 7500m3/H Medical Clean Room Easy Prefabricated ISO Class 7 50Hz
2500mm Height 7500m3/H Medical Clean Room Easy Prefabricated ISO Class 7 50Hz
2500mm Height 7500m3/H Medical Clean Room Easy Prefabricated ISO Class 7 50Hz
Specifications
Brand Name :
anlaitech
Model Number :
AL-MODULAR CLEAN ROOM
Certification :
CE , FAT, CLASS REPORT
Place of Origin :
CHINA
MOQ :
1set of china clean room
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
12WORKING DAYS.
Packaging Details :
standard exporting packing for clean room china
Name :
2500mm Height 7500m3/H Medical Clean Room Easy Prefabricated ISO Class 7 50Hz
Material :
Sandwich panel stainless steel /Painted steel+plexiglass
Product Name :
clean room, lab clean room, modular clean room, cleanroom
Application :
lab clean room, optics clean room, electronical clean room,Pharmaceutical clean room..etc
Size(mm) :
4000*6000*2500
Power supply :
220V/50Hz
Description

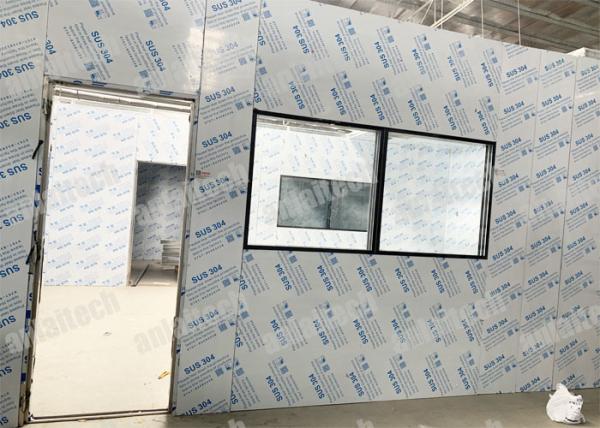

Easy prefabricated ISO class 7 cleanroom for Medical factory

Cleanrooms are essential to any manufacturing process where particulate contamination can affect the quality of goods produced.
Specific clean room classifications and ISO class code descriptions provide protective guidelines and secure environments through
controlled air filtration, which lowers the possibility of product contamination or large particulate interference within critical
process manufacturing. Specific cleanroom requirements and ISO 14644-1 cleanroom standards are used to protect consumers from any
potential flaw or mishandling of a product.
Maximum Particles/m³
≥0.1μm
≥0.2μm
≥0.3μm
≥0.5μm
≥1μm
≥5μm
ISO 3
1,000
237
102
35b
d
CLASS 1
ISO 4
10,000
2370
1,020
352
83b
CLASS 10
ISO 5
100,000
23700
10,200
3,520
832
CLASS 100
ISO 6
1,000,000
237,000
102,000
35,200
8,320
CLASS 1000

Specification
Model item
ISO 7 CLEAN ROOM
AL-CS4*6/C7
AL-CS5*10/C7
AL-CS6*12/C7
AL-CS7*20/C7
Size(mm)
4000*6000*2500
5000*10000*2500
6000*12000*2500
7000*20000*2500
Material
Framework
Cold rolled steel /Aluminum/Stainless steel/sandwich panel
Around
Plexiglass,Soft curtain,Anti-static strip curtain/sandwich panel
Clean Class Level
10000
10000
10000
10000
HEPA filter
Size(mm)
610*610*69
1220*610*69
1220*610*69
1220*610*69
Efficiency(%)
99.99
99.99
99.99
99.99
Air flow (m3/h)
3600
7500
10800
21000
Pre filter
Size(mm)
Optional
Motor Spec
Power supply
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz
Noise(dB)
62
63
62
63

2500mm Height 7500m3/H Medical Clean Room Easy Prefabricated ISO Class 7 50Hz

Application

Electronic plant, national defense, precision instruments, food processing, pharmacy, chemical, agricultural, biological, other industrial departments and all kinds of scientific laboratory, etc.
2500mm Height 7500m3/H Medical Clean Room Easy Prefabricated ISO Class 7 50Hz

What We Can Do For You?

Front end consultancy support, Concept design and engineering.

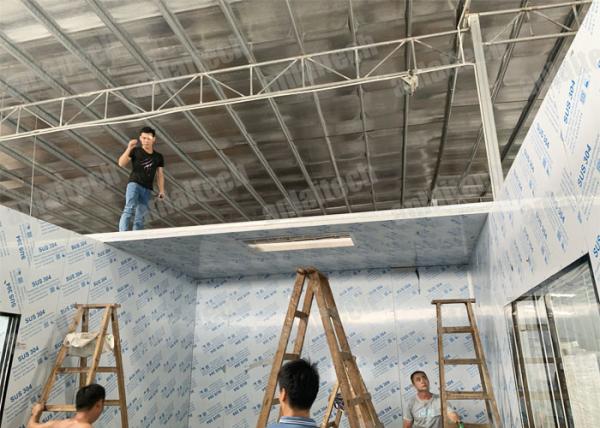

Clean room design and construction.

Unique range of clean room modular walls and ceilings, flooring system.

Cleanroom accessories (pass boxes, step over benches, change room furniture and fittings, sampling and dispensing booths, air showers, etc.) GRP clean room doors.

Equipment selection ,Validation master plans, protocols and continuous monitoring systems regulatory advise.

HVAC Design and Installation.
