575mm Width 95w Fan Filter Unit FFU Hepa Filter CE For Clean Room
575mm Width 95w Fan Filter Unit FFU Hepa Filter CE For Clean Room
Specifications
Brand Name :
anlaitech
Model Number :
AL-FFU
Certification :
CE , FAT
Place of Origin :
CHINA
MOQ :
10SETS
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
12WORKING DAYS.
Packaging Details :
standard exporting packing for clean room china
Material :
Galvanized steel with aluminum/Stainless steel/Painted steel
Product Name :
fan filter unit, FFU, hepa filter unit, powered filter unit, hepa filter unit
Application :
lab clean room, optics clean room, electronical clean room,Pharmaceutical clean room..etc
Name :
575mm width 95w Fan Filter Unit FFU Hepa Filter CE for clean room
Power :
85w, 95w, 115w, 235w
Size (WxLxHmm) :
575x875x375
Description

CE certification Fan filter unit FFU with high efficiency 99.99% hepa filter

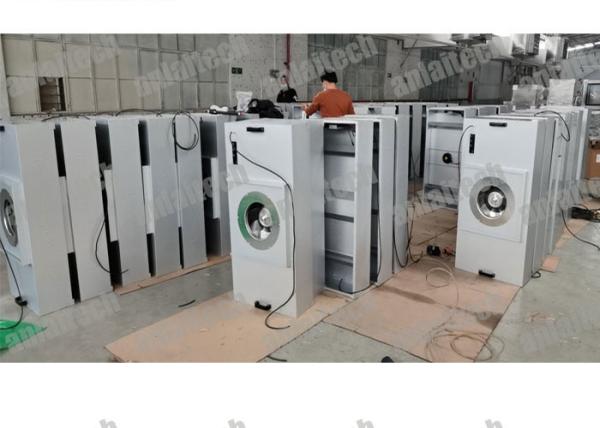

Fan Filter Units (FFU) are essential for the supply of ‘purified air’ and are most commonly used in cleanrooms, laboratories, medical facilities and micro-environments. They are motorised units which contain their own integrated HEPA-filters, fans and control systems, which enable them to remove harmful airborne particles from the air supply that is constantly being recirculated.

The units are installed within a facility’s ceiling or floor grid. Larger cleanrooms tend to require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand units.

FFU Specification

Model AL-FFU2*3 AL-FFU2*4 AL-FFU2*4S AL-FFU3*4
Size (WxLxHmm) 575x875x375 575x1175x375 615x1225x375 875x1175x375
Air chamber material Galvalume / aluminum / stainless steel
Air Flow (m³/h) 800~900 1000~1100 1100~1200 1600~1700
Air velocity (m/s) 0.35~0.55 0.35~0.55 0.35~0.55 0.35~0.55
Total pressure (Pa) 175 185 195 255
Power (W) 85 95 115 235
Weight (kg) 27 37 40 42

Noise dB

(1m below the HEPA filter)

 55~63
Vibration (mm/s) 0.2~0.7
Power supply 220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode 3 levels adjustable manually or group control by computer
Options

DOP inject port / DOP sample port / differential pressure drop test port /

differential pressure drop alarm device
HEPA filter Size (WxHxDmm) 570x870x69 570x1170x69 610x1220x69 870x1170x69
Efficiency 99.99% 0.3μm
Frame High quality anodized aluminum

Initial

pressure drop

 110Pa@0.45m/s±15%
Trait PU foam endless gasket

575mm Width 95w Fan Filter Unit FFU Hepa Filter CE For Clean Room

Product feature

B,Product Feature
Long-lift span, low noise, maintenance-free, small vibration, and adjustable speed, It can control thousand unit together.

C,Strict monitoring
It is tested according to the standard of ISO14644-1 before package.

D,Applications
Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench,
clean room ,laminar flow hood ,etc.
