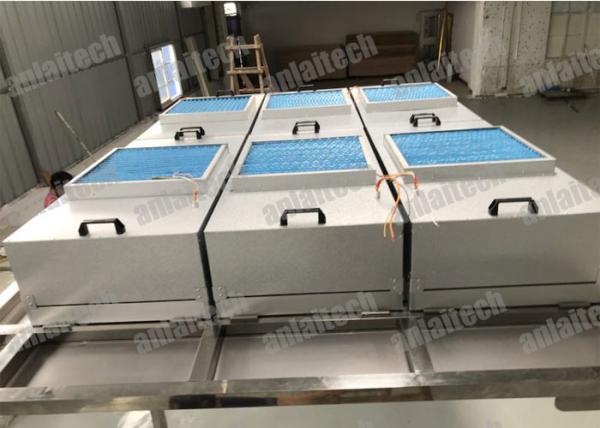

900m3/h 110V FFU HEPA Filter Fan Powered 0.2mm/S For Class 100 Cleanroom Ceiling
900m3/h 110V FFU HEPA Filter Fan Powered 0.2mm/S For Class 100 Cleanroom Ceiling
Specifications
Brand Name :
anlaitech
Model Number :
AL-FFU
Certification :
CE , FAT
Place of Origin :
CHINA
MOQ :
10SETS
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
12WORKING DAYS.
Packaging Details :
standard exporting packing for clean room china
Material :
Galvanized steel with aluminum/Stainless steel/Painted steel
Product Name :
fan filter unit, FFU, hepa filter unit, powered filter unit, hepa filter unit
Application :
lab clean room, optics clean room, electronical clean room,Pharmaceutical clean room..etc
Name :
900m3/h 110V FFU HEPA Filter Fan Powered 0.2mm/S For Class 100 Cleanroom Ceiling
Power :
85w, 95w, 115w, 235w
Vibration (mm/s) :
0.2~0.7
Description

Class100-10000 Cleanroom HEPA Ceiling Ffu & Fan Powered Filter Unit

FFU is type of unit used for filtering laminar air and supplying clean air.FFU can be used stand alone or installed modularly. FFU is the core when making cleanroom equipment for a given space including clean booth,clean bench and cleanroom assembly.

FFU Features:

*Low consumption,super performance and low operating cost
direct drive backward inclined fan,high efficiency, low noise, more endurable, more energy-saving

*Perfect construction, low profile and balanced air velocity
scientific air passage design, low resistance, low noise, save space

*Flexible design to suit various needs
we are equipped with great capabilities of customized design to suit various needs. External size can be altered to suit various type of GRID. Also,we provide professional solutions in respond to changes of external material case, special power supply, or changes of fan configuration

*Safe and operation friendly
FFU is able to support high-intensity box and ensures the safaty of staff for installation and maintenance. Remote monitoring and adjustment are available and it is easy to operate

*Multi-level protective devices
FFU is equipped wuth over-current relay,motor protective device, fault indicator and fault signal circuit. Thermal protector, fuse and motor breaker and such can be applied upon request.

FFU Specification

Model AL-FFU2*3 AL-FFU2*4 AL-FFU2*4S AL-FFU3*4
Size (WxLxHmm) 575x875x350 575x1175x350 615x1225x350 875x1175x350
Air chamber material Galvalume / aluminum / stainless steel
Air Flow (m³/h) 800~900 1000~1100 1100~1200 1600~1700
Air velocity (m/s) 0.35~0.55 0.35~0.55 0.35~0.55 0.35~0.55
Total pressure (Pa) 175 185 195 255
Power (W) 85 95 115 235
Weight (kg) 27 37 40 42

Noise dB

(1m below the HEPA filter)

 55~63
Vibration (mm/s) 0.2~0.7
Power supply 220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode 3 levels adjustable manually or group control by computer
Options

DOP inject port / DOP sample port / differential pressure drop test port /

differential pressure drop alarm device
HEPA filter Size (WxHxDmm) 570x870x69 570x1170x69 610x1220x69 870x1170x69
Efficiency 99.99% 0.3μm
Frame High quality anodized aluminum

Initial

pressure drop

 110Pa@0.45m/s±15%
Trait PU foam endless gasket

900m3/h 110V FFU HEPA Filter Fan Powered 0.2mm/S For Class 100 Cleanroom Ceiling

FFU Feature:


● Energy saving


EC direct current smooth voltage wave line to save energy


● Intelligent Control


Use the remote automatic control system and intelligent control to achieve a perfect match of the mechanical components and electronic control systems.


● Easy start and stop


start-up current is only 1/5 AC fan, it can start up many Fan in the same time; good braking performance

● Low heat power


DC fans with high energy efficiency, low heat power, so can make additional workspace to reduce the heat power.
