10800m3/H Anlaitech Mobile Cleanroom , Modular 0.3μM Air Clean Room
10800m3/H Anlaitech Mobile Cleanroom , Modular 0.3μM Air Clean Room
10800m3/H Anlaitech Mobile Cleanroom , Modular 0.3μM Air Clean Room
10800m3/H Anlaitech Mobile Cleanroom , Modular 0.3μM Air Clean Room
10800m3/H Anlaitech Mobile Cleanroom , Modular 0.3μM Air Clean Room
10800m3/H Anlaitech Mobile Cleanroom , Modular 0.3μM Air Clean Room
Specifications
Brand Name :
anlaitech
Model Number :
AL-MODULAR CLEAN ROOM
Certification :
CE , FAT, CLASS REPORT
Place of Origin :
CHINA
MOQ :
1set of china clean room
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
12WORKING DAYS.
Packaging Details :
standard exporting packing for clean room china
After-sales service provided :
Engineers available to service machinery overseas
Product name :
Air Clean Room Clean Booth,Modular clean room,Class 1000 Clean Room,Cleanroom
Application :
100 Lab / Laboratory Clean Room,Pharmaceutical,Chemical Lab,Electronic plant,Hospital
Type :
Clean Room Booth,Modular Designs,cleanroom,Class B-D
Size :
Customized Size,As your request
Description

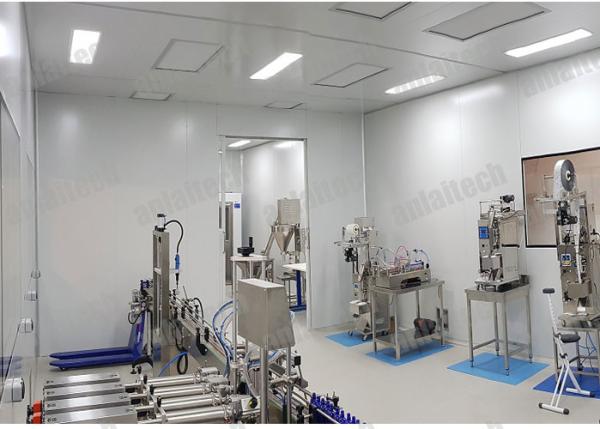

Clean Room For Mobile Phone Modular Cleanroom

Modular design means complete flexibility and cost savings for your clean space application. Krauter provides clean rooms of any size. From simple space to house critical equpiment to a full scale assembly or production area, Krauter Solutions has the experience and expertise to provide all of the required elements in a completely turn-key package.

Clean rooms create a controlled environment within the facility where temperature, particle level, and air flow can be adjusted to accommodate products and materials that require a room free of contamination. These rooms can be used for storage, processes, and decontamination.

We can help you design and install modular clean rooms and clean room components that serve the specific requirements of the pharmaceutical and micro-electronics industries, as well as other applications that range all the way from food processing to paint finishing. Working with the industry’s top suppliers of architectural cleanroom components, we provide design freedom without sacrificing functionality or value.

Modular Cleanroom ISO Class Standards


United Partition Systems provides cost-effective pre-fab modular cleanrooms that are designed in accordance with the appropriate clean room standard ISO 14644-1 / US Fed Std 209E as part of the overall clean room design service.

Our cleanrooms are factory engineered and designed to meet all your specifications for temperature, humidity, differential pressure, lighting, and noise levels and can be designed and engineered to accommodate roof loads for storage or mechanical and process equipment and permitting is available in all 50 states. We manufacture cleanrooms to the following ISO standards:

ISO Class 6


ISO Class 7


ISO Class 8


Additionally, the pre-fabricated panelized wall systems allow rooms to be modified, expanded, or relocated with minimal expense or down-time and is almost 100% reusable. To discover more about ISO 6, ISO 7 and ISO 8 classes, please visit our sister site, Cleanrooms By anlaitech

CLEAN ROOM Specification:
Model item
ISO 7 CLEAN ROOM
AL-CS4*6/C7
AL-CS5*10/C7
AL-CS6*12/C7
AL-CS7*20/C7
Size(mm)
4000*6000*2500
5000*10000*2500
6000*12000*2500
7000*20000*2500
Material
Framework
Cold rolled steel /Aluminum/Stainless steel/sandwich panel
Around
Plexiglass,Soft curtain,Anti-static strip curtain/sandwich panel
Clean Class Level
10000
10000
10000
10000
HEPA filter
Size(mm)
610*610*69
1220*610*69
1220*610*69
1220*610*69
Efficiency(%)
99.99
99.99
99.99
99.99
Air flow (m3/h)
3600
7500
10800
21000
Pre filter
Size(mm)
Optional
Motor Spec
Power supply
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz
Noise(dB)
62
63
62
63

HardWall Cleanroom

HardWall cleanrooms are the most durable of all modular cleanroom constructions. Suitable for all industries, this style of room will provide you with the structure that you need along with the cleanliness that your product requires. Meeting ISO Class 8 to ISO Class 5 or below requirements, you can rest assured that this modular cleanroom will meet your needs now and into the future.

SoftWall Cleanroom

SofftWall cleanrooms are the most versatile of all modular cleanroom constructions. Meeting ISO Class 8 to ISO Class 5 requirements, these enclosures are ideal for any setting. The lightweight extruded aluminum frame allows for fast and easy assembly, and clear vinyl allows for full visibility around the entire room. The modular nature of construction means that these units are customizable at any point in time. Motorized HEPA filters which are 99.99% efficient on particles of 0.3μm or larger sit atop the unit introducing clean air into the room, while cleanroom light fixtures provide a lighted space suitable for any application. A 4′ wide vinyl strip door with strips alternating clear/frosted provides a clear path for entry and exit. The SoftWall cleanroom is ideal for truncated production timelines, tight manufacturing spaces, and operations with the need for constant flexibility. SoftWall cleanrooms 12′ x 12′ and under can even have casters added to the support legs for increased flexibility within the space.
