300lux Negative Pressure Dispensing Booths , 1250m3/H 1PH Portable Clean Booth
300lux Negative Pressure Dispensing Booths , 1250m3/H 1PH Portable Clean Booth
300lux Negative Pressure Dispensing Booths , 1250m3/H 1PH Portable Clean Booth
300lux Negative Pressure Dispensing Booths , 1250m3/H 1PH Portable Clean Booth
Specifications
Brand Name :
anlaitech
Model Number :
AL-LAF (LAMINAR AIR FLOW)
Certification :
CE,FAT, IQ,OQ,PQ
MOQ :
1set of LAF
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
12WORKING DAYS.
Packaging Details :
standard exporting packing for clean room china
Product name :
Dispensing booth,Clean booth,Dispensing/Sampling Booth,Filtering Syetem,weighing room
Hepa filters :
99.999% efficiency at 0.3 um
Clean level :
ISO 5 (Class 100),Class A
Air velocity :
0.35~0.65m/s,adjustable,average 0.45m/s
Application :
100 Lab / Laboratory Clean Room,Pharma,Medical Health,Pharmaceutical
Power supply :
AC220V±10%,60Hz,50/60Hz; 110V±10%,380V
Function :
Laminar Air Flow System,Pharmaceutucal,Industrial Waste Gas Purification,weighing and sampling
Description

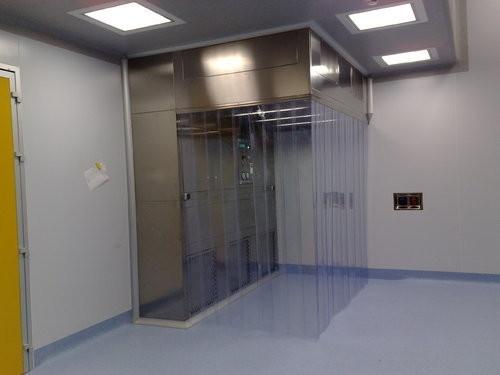

Negative Pressure Dispensing Booth, Laminar Flow Clean Booth

The Dispensing booth, also known as Negative Pressure Room is a dedicated local decontamination unit that conforms to the latest version of GMP for the production of sterile formulation. It provides a vertical unidirectional airflow with a fraction (80% - 90%) of clean air circulating through the working area, and another fraction (10% - 20%) discharged to the vicinity of the working area to provide negative pressure to prevent dust spill and cross-contamination in the work area, in order to ensure a high degree of cleanliness of the working environment.

Advantages

1. Efficiency continuous negative pressure to prevent cross contamination, and to ensure the high clean class level of the working area.

2. Uniform air flow supply clean vertical unidirection airflow, creat a virtuous circle of air recirculation.

3. Flexibility control panel control, easy maintainance and exchange of filters.

4. Durable high quality materials to ensure the long life-span of the equipment.

Product Specification
MODEL
 AL-LAF1200 AL-LAF2000 AL-LAF2400

External Size

(WxLxHmm)

 1200x1500x2000 2000x1500x2000 2400x1500x2000
Internal Size (WxLxHmm)
1100x1000x2000
1900x1000x2000
2300x1000x2000
Working area
air flow (m³/h)
1250
1550
4850
Power (W)
270
400
750
Wind speed (m/s)
0.3-0.6m/s adjustable
Clean class
A
Noise dB
≤65
lllumination (lux)
≥300lux
Filteration
G4+F8+H14
Power voltage
220V 50Hz 1PH
