CE Class 1000 Prefabricated Soft Wall Cleanroom , ISO 6 12ft Mobile Clean Room
CE Class 1000 Prefabricated Soft Wall Cleanroom , ISO 6 12ft Mobile Clean Room
Specifications
Brand Name :
anlaitech
Model Number :
AL-MODULAR CLEAN ROOM
Certification :
CE , FAT, CLASS REPORT
Place of Origin :
CHINA
MOQ :
1set of china clean room
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
12WORKING DAYS.
Packaging Details :
standard exporting packing for clean room china
After-sales service provided :
Engineers available to service machinery overseas
Material :
Stainless Steel,Stailess Steel SUS304/201/Q195 /galvanized Sheet,color plate for clean room,Customized SUS or Aluminium,customized
Application :
100 Lab / Laboratory Clean Room,OT Room,Clean room,air cleaning in a small area,Chemical Lab
Product name :
Air Clean Room Clean Booth,Class 10000 Clean Room,Softwall clean room,Cleanroom,class 1000 laminar air flow Hardwall Clean Booth
Cleanliness :
From Class 10-10000
Name :
Cleanroom Project,Clean booth,Hospital Clean room,Level Clean Room,Class 1000 Clean Room
Size :
customized,As your request
Hepa filter :
99.99%@0.3um,99.99% 0.3um,H11-H14 HEPA Filter
Description

Class 1000 PREFABRICATED SOFTWALL CLEANROOM, ISO 6 Mobile Clean Room Booth

This mobile, laminar flow, soft wall cleanroom is transportable to anywhere in the world. The walls, frame and ceiling fit into the castered case that the filters sit upon. The filters are individually packed and protected in their own shipping cases.

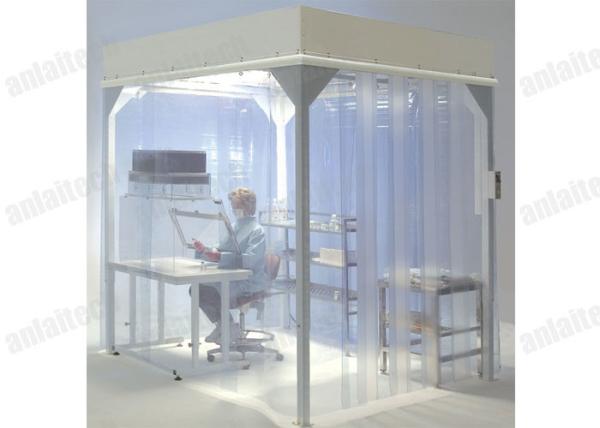

The unit pictured is 8' x 8' x 7' high, small enough to fit into most rooms. The horizontal laminar flow allows for the low ceiling allowance, yet provides for an ISO Class 6 (Class 1000) environment.

This specialty softwall cleanroom is but one of the many designs that CleanroomSupply can provide for your specific needs.

CE Class 1000 Prefabricated Soft Wall Cleanroom , ISO 6 12ft Mobile Clean Room

PREFABRICATED SOFTWALL CLEANROOM FEATURES


• Free spans up to 12 feet without adding a support leg or hanging point (delete the period)


• Modular bolt-together design simplifies both initial cleanroom assembly and future additions


• All frame components are painted in a durable and cleanroom-approved flat white powder coated finish


• 2’x2’ tubular steel legs - 14 gauge


• 2’ x 4' tubular steel beams - 11 gauge


• Aluminum T-bars with polyurethane foam gasket from the 2'x4' ceiling grid


• 12 gauge steel support gussets and 1/4 x 3/4 solid steel struts


• Transparent clear 40 mil flame retardant static dissipative curtains, attached to the frame with Dual Lock


• Adjustable steel leg leveling glides on each leg


• Modular clean room design offers great flexibility


• Cleanroom Classifications from ISO 8 Class 100,000 to ISO 4 Class 10


• Complete with motorized ceiling HEPA filters, lights and prefab wiring kit (requires only assembly and electric power connection)


• Fast delivery - most units shipped from stock

CLEAN ROOM Specification:
Model item
ISO 7 CLEAN ROOM
AL-CS4*6/C7
AL-CS5*10/C7
AL-CS6*12/C7
AL-CS7*20/C7
Size(mm)
4000*6000*2500
5000*10000*2500
6000*12000*2500
7000*20000*2500
Material
Framework
Cold rolled steel /Aluminum/Stainless steel/sandwich panel
Around
Plexiglass,Soft curtain,Anti-static strip curtain/sandwich panel
Clean Class Level
10000
10000
10000
10000
HEPA filter
Size(mm)
610*610*69
1220*610*69
1220*610*69
1220*610*69
Efficiency(%)
99.99
99.99
99.99
99.99
Air flow (m3/h)
3600
7500
10800
21000
Pre filter
Size(mm)
Optional
Motor Spec
Power supply
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz
Noise(dB)
62
63
62
63

PREFABRICATED SOFTWALL CLEANROOM FEATURES


• Free spans up to 12 feet without adding a support leg or hanging point (delete the period)


• Modular bolt-together design simplifies both initial cleanroom assembly and future additions


• All frame components are painted in a durable and cleanroom-approved flat white powder coated finish


• 2’x2’ tubular steel legs - 14 gauge


• 2’ x 4' tubular steel beams - 11 gauge


• Aluminum T-bars with polyurethane foam gasket from the 2'x4' ceiling grid


• 12 gauge steel support gussets and 1/4 x 3/4 solid steel struts


• Transparent clear 40 mil flame retardant static dissipative curtains, attached to the frame with Dual Lock


• Adjustable steel leg leveling glides on each leg


• Modular clean room design offers great flexibility


• Cleanroom Classifications from ISO 8 Class 100,000 to ISO 4 Class 10


• Complete with motorized ceiling HEPA filters, lights and prefab wiring kit (requires only assembly and electric power connection)


• Fast delivery - most units shipped from stock
