H14 Dispensing Bench design GMPs Laminar flow clean booth For phamaceuticals Class 100

Air comes into clean booth through primary air filter from dust collection machine ,inner returned air and inhaled with centrifugal fan. Then air is blown out through high efficiency air filter from the top of the operation area. That will form high-degree clean vertical air curtain as 0.45 m/sec of the wind speed and remove natural air in working area. Clean air flow is vertical unidirectional flow, thus ensuring the work area required cleanliness.

Features

The clean booth is similar to a small-scale simple clean room. Its features include easy installation, short construction period and so on. In addition, it is the best choice for the clean room design.
Stable structure, aesthetic, anti rust, dust-free.
Fan filter unit: Adopting the characteristics of continuous variable transmission DC energy-saving motor.
Anti-static curtain: anti-static works well, high transparency, flexibility, no deformation, anti-aging.

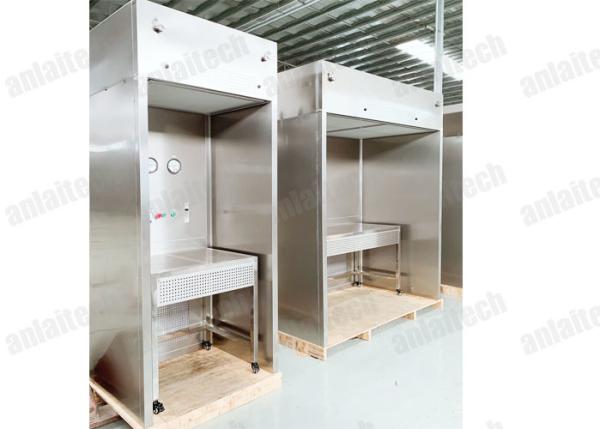

Dispensing booth structure

1). The Dispensing booth is made of SUS 304 stainless steel plate;

2). Top configuration tank HEPA air filter;

3). At the bottom of the weighing chamber, configure the primary and middle efficiency air filter;

4). Weigh the top of the chamber and configure a uniform flow membrane to make the wind blow evenly.

5). Internal configuration high power low noise centrifugal fan;

6). The weighing hood is equipped with two differential pressure gauges for monitoring the pressure difference of the intermediate efficiency air filter/the pressure difference of the high efficiency air filter;

7). The weighing hood is equipped with a lifting table;

8). The overall structure of the weighing chamber is split type, which can be assembled on site;
