H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized
H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized
H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized
H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized
H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized
H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized
Specifications
Brand Name :
Healthy Filter
Certification :
ISO9001/RoHS/SGS
Place of Origin :
China
MOQ :
10 pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
7-20days
Material :
polypropylene or fiberglass
Type :
HEPA Filter
Color :
Customized
Size :
Customized
Warranty :
1 year
Efficiency :
H13/H14
Frame :
Galvanized
OEM/ODM Service :
Welcome
Description

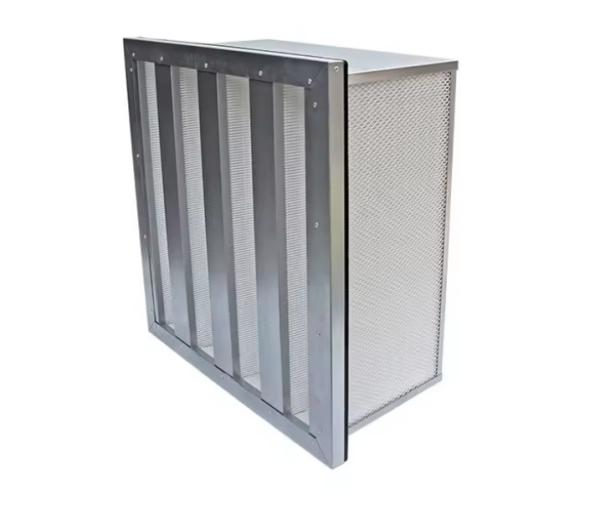

Flanged Type Compact V-Bank Galvanized H13 H14 Mini Pleat Reusable Air Filter

Specialty:

  • Flanged Type: This refers to the design of the filter, which includes flanges or mounting flaps around the edges. These flanges provide a means for secure installation within the air handling system.

  • Compact V-Bank: The filter media is arranged in a V-shaped configuration, which maximizes the surface area for filtration within a compact space. This design allows for greater airflow while maintaining high filtration efficiency.

  • Galvanized Construction: The filter frame is made of galvanized steel, which offers durability and corrosion resistance. Galvanized steel is commonly used in HVAC applications due to its strength and longevity.

  • H13 H14 Filtration Efficiency: The filter media is rated as H13 or H14 according to the EN 1822 standard. H13 and H14 are high-efficiency particulate air (HEPA) filters, capable of removing at least 99.95% and 99.995% of airborne particles, respectively, with a size of 0.3 micrometers or larger.

  • Mini Pleat Design: The filter media features mini pleats, which increase the surface area available for filtration while maintaining a compact form factor. Mini pleats provide high filtration efficiency and low pressure drop, resulting in energy savings and extended filter life.

  • Reusable: Unlike disposable filters, this filter is designed to be reusable. It can be cleaned and maintained to prolong its service life, reducing the need for frequent replacements and lowering operating costs.

Specification:

Type

Dimensions

W*H*D(mm)

 Filter Class(m2) Structure

Initial resistance

&airflow(Pa&m3/h)

 Frame
HF-HV F8 H10 H13 Plastic
287*592*292 8.4

FlangedType

4V

 90&1600 180&1600 240&1600
592*592*292 18.8 90&3200 180&3200 240&3200
305*610*292 13.5

Box Type

5v

 90&1800 180&180 240&1800
610*610*292 27 90&3600 180&3600 240&3600

Detailed Displays:

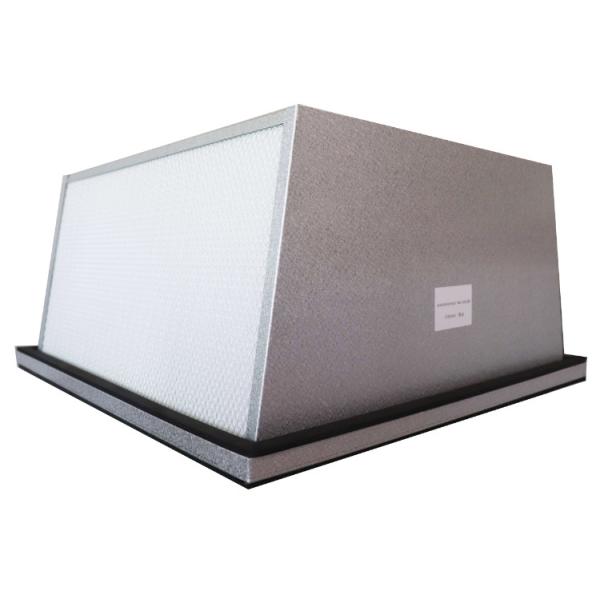

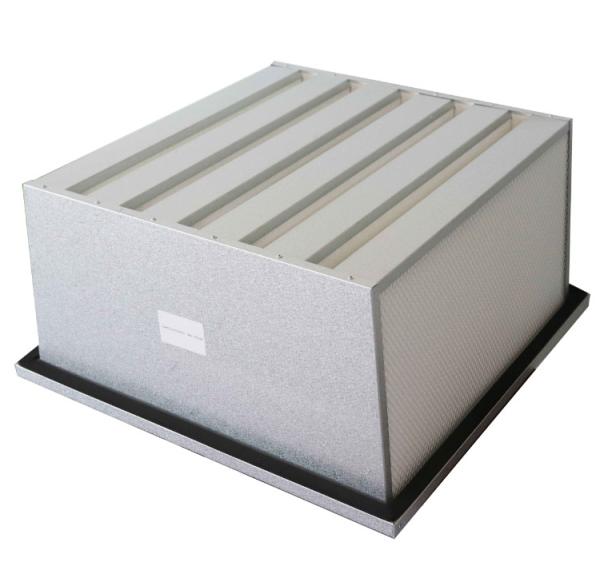

H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized

H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized

H13 H14 Mini Pleat Reusable Air Filter Flanged Type Compact V-Bank Galvanized
