Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes
Specifications
Brand Name :
JBNR
Model Number :
WT20,WP,WC20,WL10,WL15,WL20
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiation
Supply Ability :
1000 Kilogram / Kilograms per Month
Delivery Time :
15-25days
Packaging Details :
plywood box with foam sheet inside
Operating Current :
DC AC
Welding Current :
60-90,90-120,120-150
Operating Temperature :
Standard Temperature
Application :
TIG Welding, For welding,Smelting,, welding and cutting
Surface :
Ground Finish
Standard :
ISO 6848, AWS A.5.1 E6013
Length :
175, 300, 350, 400,450mm
Diameter :
2.0, 2.5, 3.2, 4.0mm
Price :
Negotiable
Description

Tungsten Product Tungsten Electrode For Tig Welding Torch Tungsten Welding Rod Tungsten Welding Electrode

We have generally all types of tungsten electrodes for TIG welding, such as ce - w electrode , law electrode , th - w electrode , zr - w electrode , yt - w electrode , pure tungsten electrode , w-rex electrodes, the working performance is good and price is competitive, we accept sample before cooperation.

tungsten electrode composition Color mark
Grade Dioxide Dioxide in % Impurities % tungsten %
WT10 ThO2 0.80-1.20 ≤0.02 Remainder Yellow
WT20 ThO2 1.70-2.20 ≤0.02 Remainder Red
WT30 ThO2 2.80-3.20 ≤0.02 Remainder Purple
WT40 ThO2 3.80-4.20 ≤0.02 Remainder Orange
WC20 CeO2 1.80-2.20 ≤0.02 Remainder Grey
WL10 La2o3 0.90-1.20 ≤0.02 Remainder Black
WL15 La2o3 1.40-1.60 ≤0.02 Remainder Gold
WL20 La2o3 1.90-2.10 ≤0.02 Remainder Blue
WZr3 ZrO2 0.15-0.50 ≤0.02 Remainder Brown
WZr8 ZrO2 0.70-0.90 ≤0.02 Remainder White
WP - - ≤0.02 99.8 Green
WY YO2 1.80-2.20 ≤0.02 Remainder Sky blue
WS2 YO2 1.80-2.20 ≤0.02 Remainder Turquoise

Diameter Diameter tolerance Length Length tolerance
mm inch mm mm mm
1 1/25 (+/-)0.01 50,75,150,175 (+/-)1.0
1.2 6/125 (+/-)0.01 50,75,150,175 (+/-)1.0
1.6 1/16 (+/-)0.02 50,75,150,175 (+/-)1.0
2 2/25 (+/-)0.02 50,75,150,175 (+/-)1.0
2.4 3/32 (+/-)0.02 50,75,150,175 (+/-)1.0
3 3/25 (+/-)0.03 50,75,150,175 (+/-)1.0
3.2 1/8 (+/-)0.04 50,75,150,175 (+/-)1.0
4 5/32 (+/-)0.04 50,75,150,175 (+/-)1.0
4.8 3/16 (+/-)0.04 50,75,150,175 (+/-)1.0
5 1/5 (+/-)0.04 50,75,150,175 (+/-)1.0
6 15/64 (+/-)0.04 50,75,150,175 (+/-)1.0
6.4 1/4 (+/-)0.04 50,75,150,175 (+/-)1.0
8 5/16 (+/-)0.04 50,75,150,175 (+/-)1.0
10 2/5 (+/-)0.04 50,75,150,175 (+/-)1.0

Feature of tungsten electrode for tig welding

• Low electronic function

• Good conductivity

• Good electron emission ability

• Good mechanical cutting performance

• High elastic modulus, Low vapour pressure

• High recrystallization temperature

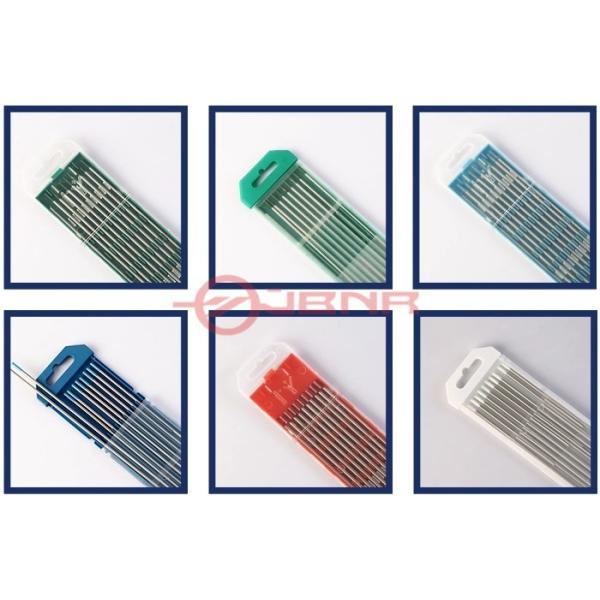

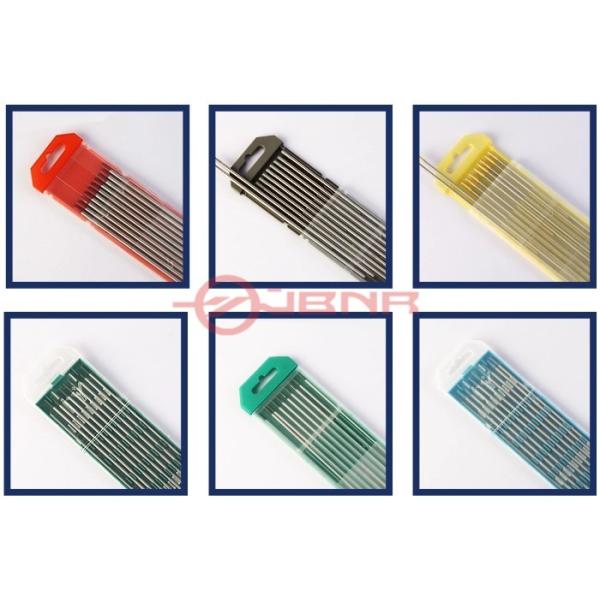

Packaging

• 10pcs in plastic case

• one carton box with 1000pcs inside

• protective bubble inside

Note: your special request will be available for the package of tungsten electrode.
