High Temperature Furnace 99.95% min Molybdenum / Moly / Mo Reflection Shield
High Temperature Furnace 99.95% min Molybdenum / Moly / Mo Reflection Shield
Specifications
Brand Name :
JBNR
Model Number :
As per customer's request
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiation
Supply Ability :
1000 Kilogram / Kilograms per Month
Delivery Time :
15-25days
Packaging Details :
plywood box with foam sheet inside
Density :
≥10.1/cm3
Purity :
≥99.95%
Color :
Silver Grey
Application :
Sapphire growth furnace heat reflection
Application temperature environment :
≤2000℃
Dimension :
Customized
Price :
Negotiable
Description

High Temperature Furnace 99.95% min Molybdenum / Moly / Mo Reflection Shield

Ⅰ, Physical and chemical properties

1,Purity:Mo≥99.95%

2,Density::Mo≥10.1g/cm3

3,Application temperature environment:≤2000℃；

Ⅱ, Measurements and tolerances

Unit:mm

Produced by single molybdenum sheet Produced by multi-molybdenum sheet
thickness Max cylinder diameter Max cylinder height
2.0±0.1 450±2 660±1
1.0±0.08 610±2 660±1 Manufacture according to customers’
0.5±0.04 700±2 660±1 requirements
0.3±0.03 700±2 660±1

Special sizes can be manufactured based on customers' requirements

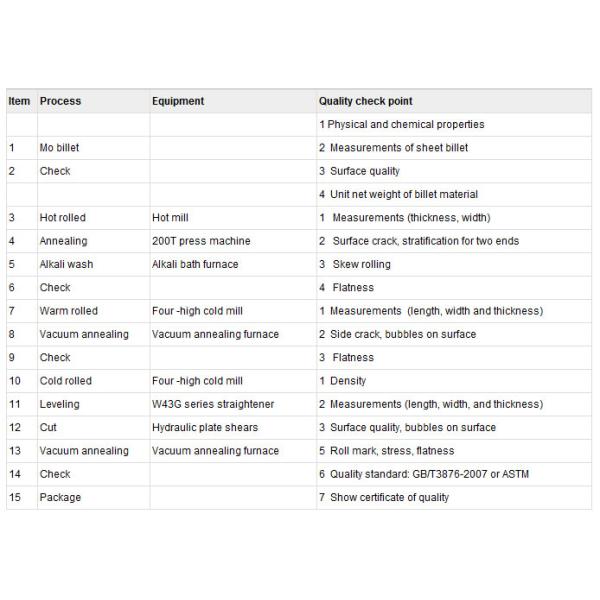

Ⅲ , Manufacture process and equipment

High Temperature Furnace 99.95% min Molybdenum / Moly / Mo Reflection Shield

Ⅳ,Application
As the heat shield parts in the sapphire growth furnace, molybdenum heat shield, molybdenum upper cover and bottom cover have the key influence on the heat reflection.
High purity, accurate dimenisons, smooth surface, easy assembly, and reasonable design of the molybenum heat insulator will be very important for the sapphire ingot quality.
