Accurate Tolerance Ag Plate High Thermal Conductivity 70MoCu For IGBT In EV / HEV Industry
Accurate Tolerance Ag Plate High Thermal Conductivity 70MoCu For IGBT In EV / HEV Industry
Specifications
Brand Name :
JBNR
Model Number :
HCMC020
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5 tons a month
Delivery Time :
20 days
Packaging Details :
Wooden boxes
Grade: :
Mo85Cu15, Mo80Cu20, Mo75C25, Mo70Cu30, Mo60Cu40,Mo50Cu50
Surface: :
Low surface roughness
Dimensions: :
Based on customer requirements
Plating: :
Nickel plating and gold plaing
Shape: :
Shims or sheets or fabricated parts
Description

Accurate Tolerance Ag Plate High Thermal Conductivity 70MoCu For IGBT In EV / HEV Industry

Description:

With technology development, there are more need for higher power in smaller microelectronics components. This also increase the requirements for heat dissipation.

For sensitive components, to use metal composite like molybdenum copper material is a wise choice.

Advantages:

  • High thermal conductivity since no sintering additives have been used
  • Excellent hermeticity
  • Relatively small density
  • Stampable sheets available (Mo content no more than 75 wt%)
  • Semi-finished or finished (Ni/Au plated) parts available

Product Properties:

Grade Mo Content Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

 Thermal conductivity W/(M·K)
70MoCu 70±2% 9.8 7 200(25℃)/196(100℃)
60MoCu 60±2% 9.66 7.5 222(25℃)/217(100℃)
50MoCu 50±2% 9.5 10.2 250(25℃)/220(100℃)

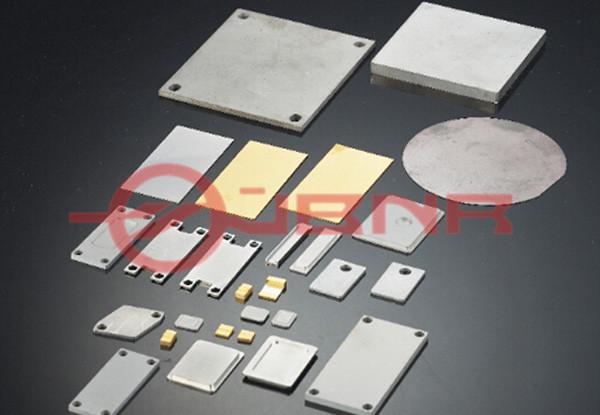

Accurate Tolerance Ag Plate High Thermal Conductivity 70MoCu For IGBT In EV / HEV Industry

Applications:

Molybdenum copper have been used in various fields like opto-electronics, high-frequency applications, power electronics and micro-electronics.

In these sectors, they are often employed in below components like:

GaN/GaAs transistors

Ceramic packages used in microwave and RF fields

Components in radio base station of telecommunication

High-power LEDs

IGBT modules for EV/HEV and stationary transformers
