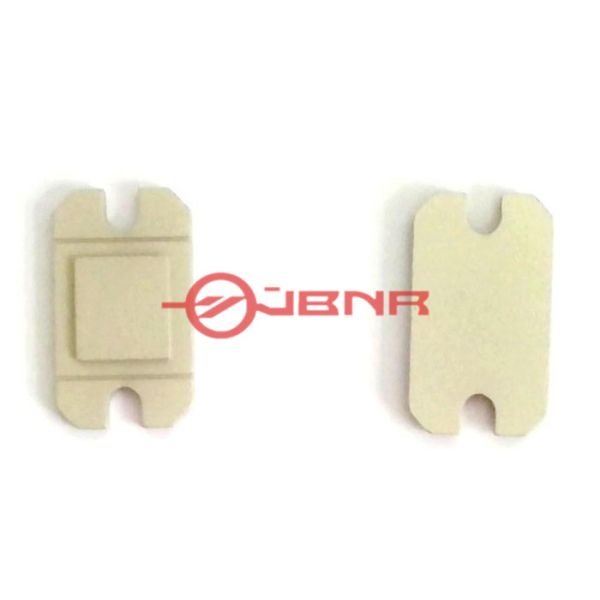

Molybdenum Copper Heat Spreader
Molybdenum Copper Heat Spreader
Molybdenum Copper Heat Spreader
Molybdenum Copper Heat Spreader
Specifications
Brand Name :
JBNR
Model Number :
HCMC014
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5 tons a month
Delivery Time :
20 days
Packaging Details :
Wooden boxes
Grade: :
Mo80Cu20, Mo75C25, Mo70Cu30, Mo60Cu40,Mo50Cu50
Surface: :
Low surface roughness
Dimensions: :
Based on customer requirements
Plating: :
Nickel plating and gold plaing
Shape: :
Shims or sheets or fabricated parts
Description

Efficient Cooling 80/20 Molybdenum Copper 70/30 Molybdenum Copper Heat Spreader For Instance IGBT Modular

Description:

With

With reliable heat dissipation properties, our molybdenum copper heat sinks are used widely in electronic components.

Our materials can be often found in the semiconductor components like high-power transistors, for instance IGBT modules or RF amplifiers, as well as LED chips.

MoCu heat sinks combine the low thermal expansion of molybdenum and tungsten with the excellent thermal conductivity of copper. And with years of experience, we have also tailored composite materials to meet the requirements of silicon, GaAs and GaN-based semiconductor materials. So if you choose our materials, you can avoid failures resulting from overheating or mechanical damage.

Advantages:

1. This molybdenum copper base plates feature high thermal conductivity and excellent hermeticity.

2. Molybdenum copper flanges are 40% lighter than comparable tungsten copper composite.

3. If you have doubt about plating, we can give you our suggestions like nickel thickness, gold thickness.

Besides, if you are design the heat sink in your high power transistors, we can recommend the suitable material for your reference.

Product Properties:

Grade Mo Content Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

 Thermal conductivity W/(M·K)
70MoCu 70±2% 9.8 7 200(25℃)/196(100℃)
60MoCu 60±2% 9.66 7.5 222(25℃)/217(100℃)
50MoCu 50±2% 9.5 10.2 250(25℃)/220(100℃)

Molybdenum Copper Heat Spreader

Application:

Molybdenum copper heat spreaders are widely used in applications such as microwave carriers, ceramic substrate carriers, laser diode mounts, optical packages, power packages, butterfly packages and crystal carriers for solid state lasers, etc.
