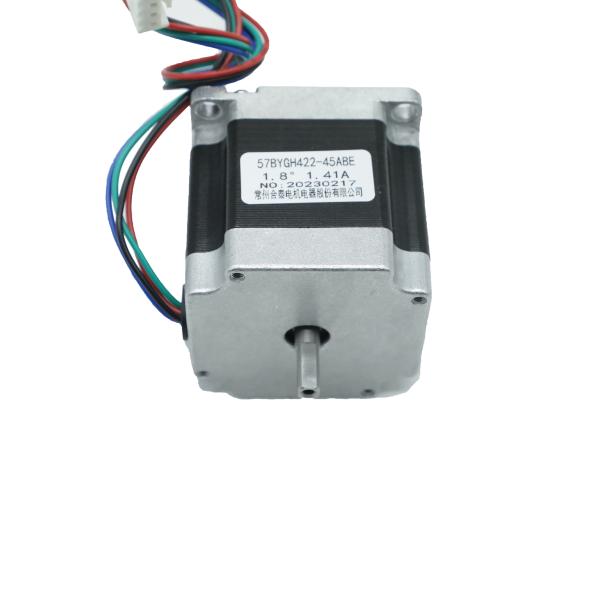

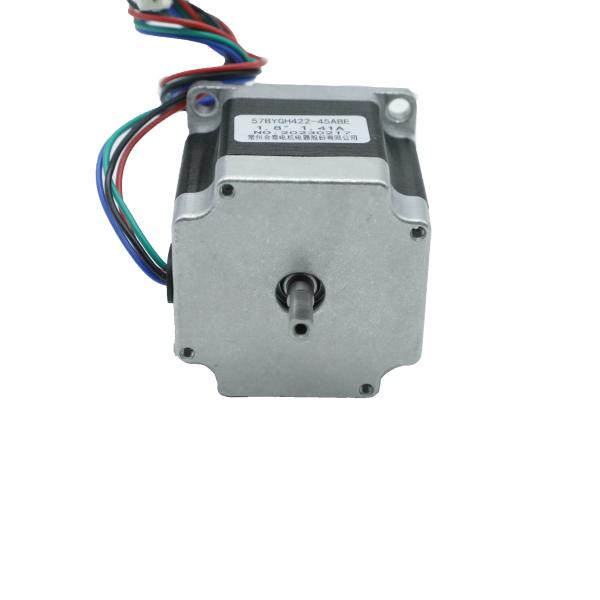

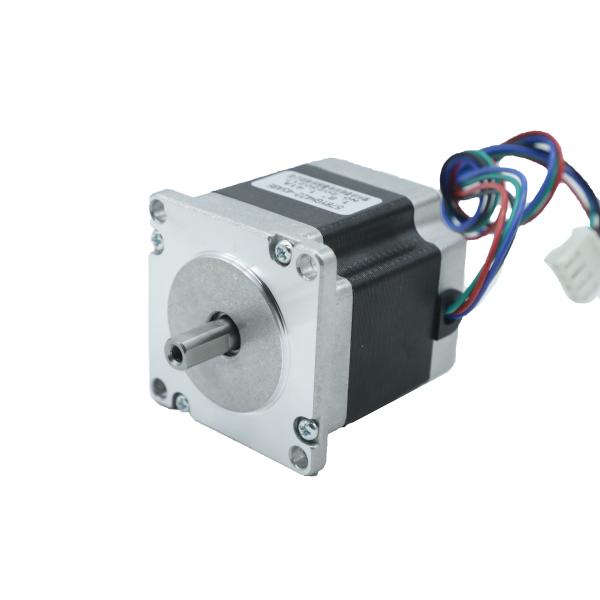

Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Specifications
Brand Name :
HeTai
Model Number :
57BYGH422-45ABE
Certification :
CE ISO ROHS
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Hybrid Stepper Motor
Step Angle :
1.8 °
Current :
1.41A
Rated Voltage :
5.07V
Motor length :
56mm
No. of lead wires :
4
Resisitance :
3.6 OHMS
Holding Torque :
1.25 N.m
Inductance :
10mH
Description

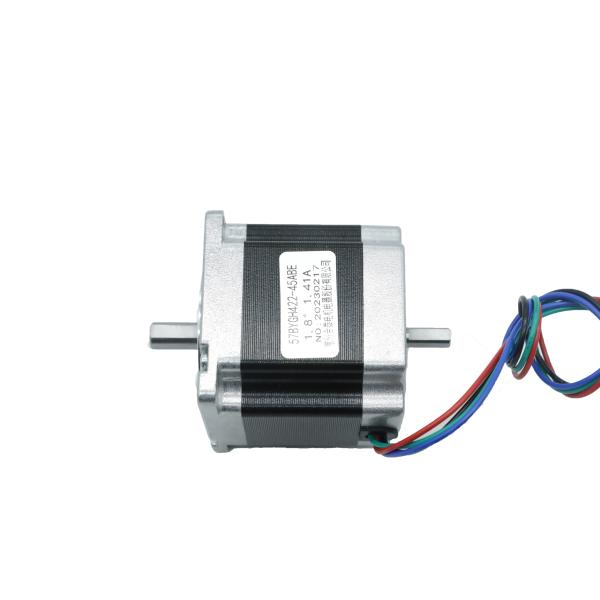

Nema23 57mm double output shaft 1.41A 5.07V 1.25N.m hybrid stepper motor

Advantages of stepper motors:
High precision: Stepper motors can achieve high-precision control by controlling parameters such as motor drive current and pulse number, and usually can achieve a precision of several microns or even several nanometers.
High reliability: Since the stepper motor has no mechanical parts such as brushes and commutators, it has high reliability and stability, and is not easily affected by factors such as the environment and load.
Wide range of applications: Stepper motors can be used in many occasions, such as CNC machine tools, 3D printers, automated production lines, etc., and have strong applicability.

Product Name
Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
1.8°
Lead wire
4
Voltage (V)
5.07
Inductance(mh/phase)
10
Resistance(ohms)
3.6
Current (A/Phase)
1.41
Holding Torque (Kg.cm)
12.5




Mechanical Dimension Of Brushless DC Motor
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M

Production Process
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China

High-end test equipment

Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.MNema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.MNema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M

Certification

Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.MNema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.MNema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.MNema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.MNema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.MNema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M


Packing&Delivery
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Nema23 57mm Double Output Shaft Hybrid Stepper Motor 1.41A 5.07V 1.25N.M
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
