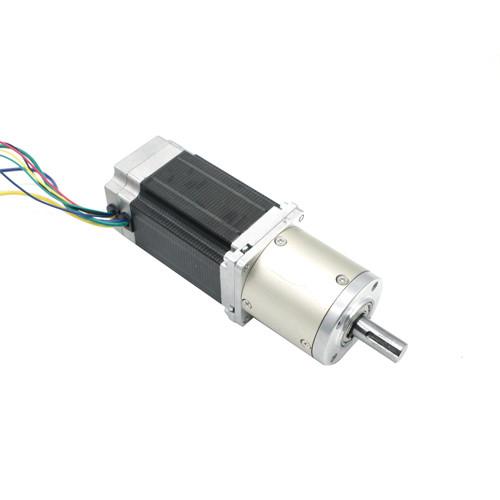

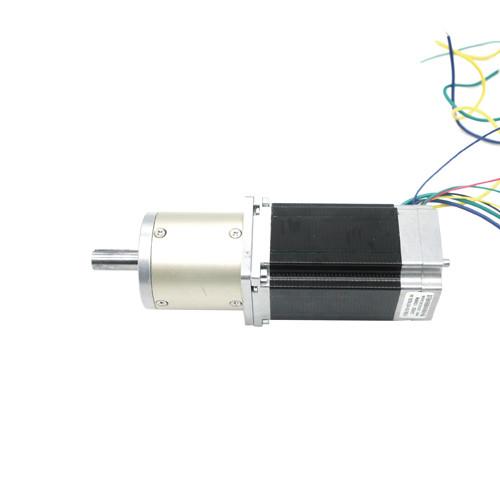

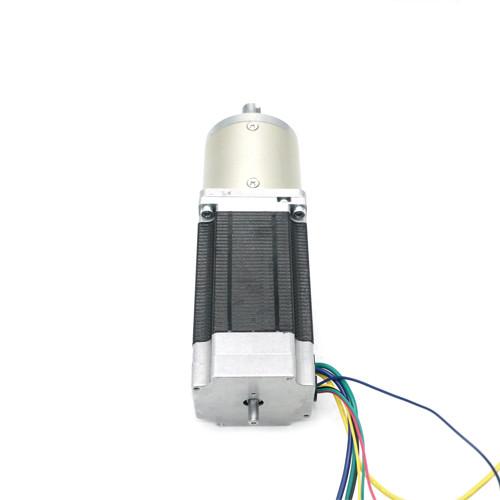

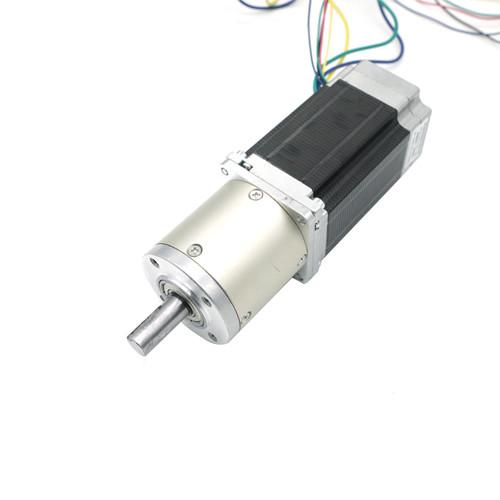

Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Specifications
Brand Name :
Hetai
Model Number :
57BLF03-AG
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/month
Delivery Time :
28-31
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Gearbox Brushless Motor
Nominal Voltage :
24 V
Rated speed :
105 RPM
Rated speed of motor :
3000 rpm
No-load current :
1.9 A
Rated torque of motor :
0.6 N.m
Rated torque with gearbox :
13.8 N.M
Reduction Ratio :
1:28.44
Dielectric Strength :
500V AC 1 minute
Description

Nema23 13.8N.m 24V 105RPM 1.9A brushless dc motor with planetary gearbox

The advantages of brushless geared motors are:

1. Brushless, low interference: The brushless motor removes the brush, and does not generate electric sparks during operation, which greatly reduces the interference of electric sparks on remote control radio equipment;

2. Low noise and smooth operation: the friction force is relatively small during operation, the operation is smooth, and the noise generated is relatively low;

3. It adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and can work continuously in harsh environments such as corrosion and humidity;

4. Long life and low maintenance cost: The wear is mainly on the bearings. From a mechanical point of view, the motor is almost a maintenance-free motor. When necessary, only some dust removal maintenance is required.

Due to the above advantages of brushless motors, and with the continuous decline in the cost of brushless controllers and the development and market competition of brushless technology at home and abroad, brushless power systems are developing and popularizing at a high speed, and the application of this motor is becoming more and more universal.

Electrical Specification:

Product Name
Brushless Gearbox Motor
Model
57BLF03-057AG28.44
Reduction Ratio
1:28.44
Voltage (V)
24 V
Rated Speed with gearbox (RPM)
105
Rated Torque with gearbox (N.M)
13.8
Power (W)
188
Insulation class
B

Mechanical Dimension

Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox

High-quality Raw Materials

​Brushless Motor Final Inspection

Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Measure the Screw Hole Distance Measure the Length of Wire Measure the Length of PVC
Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
Test the Resistance Listening Test the speed

CNC Center

Professional motor testing equipment

Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary GearboxNema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox

Package&Delivery

Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox

Nema23 13.8N.M 24V 105RPM 1.9A Brushless Dc Motor With Planetary Gearbox
