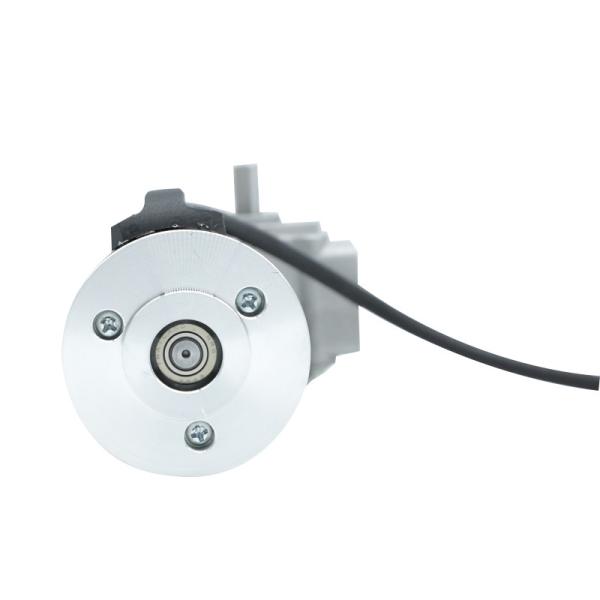

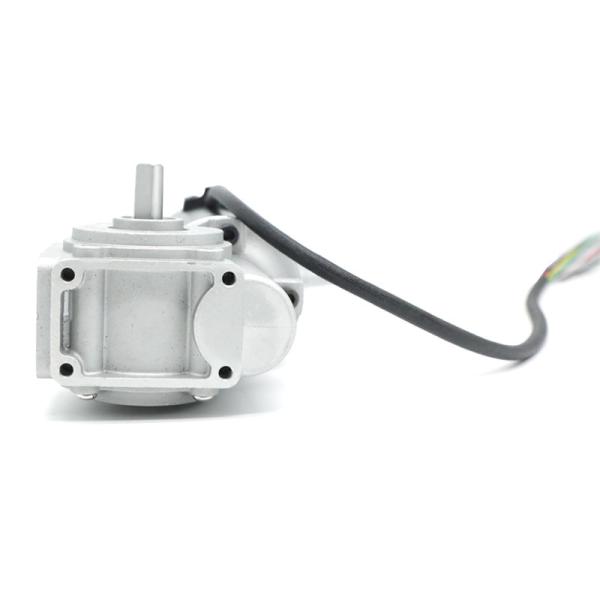

63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
Specifications
Brand Name :
Hetai
Model Number :
63BLX01-XXWG15R
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/month
Delivery Time :
28-31
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
DC Worm Gear motor
Application :
wheel drive, AGV trolley
Nominal Voltage :
24 V
Rated power :
114W
Rated speed :
220 RPM
Rated torque with gearbox :
3.5 N.M
Reduction Ratio :
1:15
Rated speed of motor :
3300rpm
Description

Hetai brand 63BLX01-XXWG15R DC worm gearbox motor 220rpm 1A 3.5N.m 114W 24V

Hetai Products’ Worm Gear Motors are designed to generate high torque in a small package size. Worm Gear Motors are great for applications that require a self- locking or breaking feature since the output shaft can’t rotate when there’s no power applied. The worm gear makes it so the output shaft of the gear motor is oriented 90 degrees to the motor body. This right angle output has advantages in applications where overall length is limited. With various reduction ratios, precision cut gears, voltages and sizes, Hetai Products has a DC Worm Gear Motor solution for your application.


Electrical Specification:

Product Name
DC Worm Gear motor
Model
63BLX01-XXWG15L
Reduction Ratio
1:15
Voltage (V)
24 V
Rated Speed with gearbox (RPM)
220
Rated Torque with gearbox (N.M)
3.5
Power (W)
114
Insulation class
B

Mechanical Dimension
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V

Hetai International Trade Scope

Product Range

Stepping Motor & Planetary Gearbox Motor & DC Brushless Motor & Servo Motor


Hetai Motor Production Process


High-quality Raw Materials

​Brushless Motor Final Inspection

63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
Measure the Screw Hole Distance Measure the Length of Wire Measure the Length of PVC
63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
Test the Resistance Listening Test the speed

Automatic assembly line

63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V

Hetai 2023 Hannover Messe, Germany

63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V

Package&Delivery

63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V

63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V

Certification

63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V63BLX01-XXWG15R DC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W 24V
