33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M
33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M
Specifications
Brand Name :
He Tai
Model Number :
33BL
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Brushless DC Motor
Hall Effect Angle :
120° Electrical Angle
Winding Type :
Star
Ambient Temperature :
-20℃~+50℃
Insulation Resistance :
100MΩ Min.500VC DC
Dielectric Strength :
600VAC 1 Minute
MAX Radial Force :
15N (10mm From Front Flange)
MAX Axial Force :
10N
Insulation Class :
B
Rated Voltage :
24V
Rated Torque :
0.02 N.M
Description

33mm 4 Poles Brushless DC Motor Light weight 4000 RPM 24V 0.02N.M

The advantages of a brushless motor over brushed motors are high power-to-weight ratio, high speed, nearly instantaneous control of speed (rpm) and torque, high efficiency, and low maintenance. Brushless motors find applications in such places as computer peripherals (disk drives, printers), hand-held power tools, and vehicles ranging from model aircraft to automobiles.

Product Name Brushless DC Motors Winding Type Star
Hall Effect Angle 120° Electrical Angle Insulation Class B
Ambient Temperature -20℃~+50℃ Insulation Resistance 100MΩ Min.500VC DC
Rated Torque 0.02 N.M MAX Radial Force 15N (10mm From Front Flange)
MAX Axial Force 10N Rated Speed 4000 RPM

Electrical Specification

Model
Specification Unit 33BL01C
Number Of Phases Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 24
Rated Speed Rpm 4000
Rated Current A 0.43
Rated Torque N.m 0.02
Rated Power W 8.3
Peak Torque mN.m 0.06
Peak Current Amps 1.3
Torque Constant N.m/A 0.045
Back EMF constant V/kRPM 4.8
Body Length mm 42.5
Weight Kg 0.16

You can download our 33BL Brushless DC motor product brochure:33BL.pdf

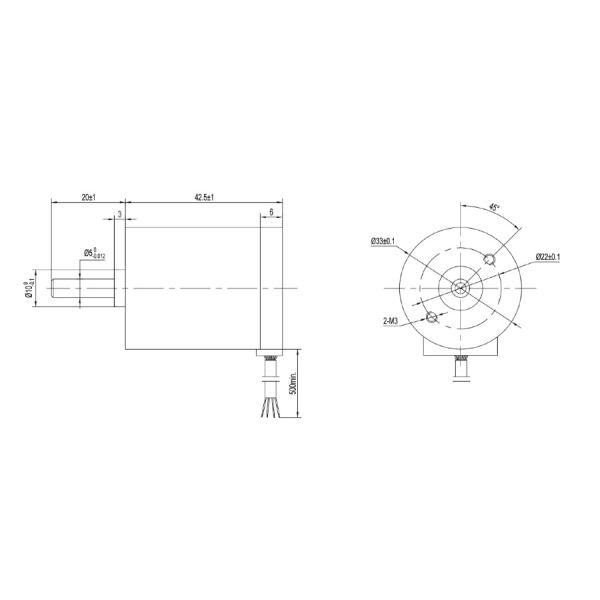

Mechanical Dimension

33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M

Product Application Range

33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M

33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M

Production Process

33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M

Manufacture Scene

33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M

Certification

33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M33mm 4 Poles Brushless DC Motor NEMA14 Low noise 4000 RPM 24V 0.02N.M
