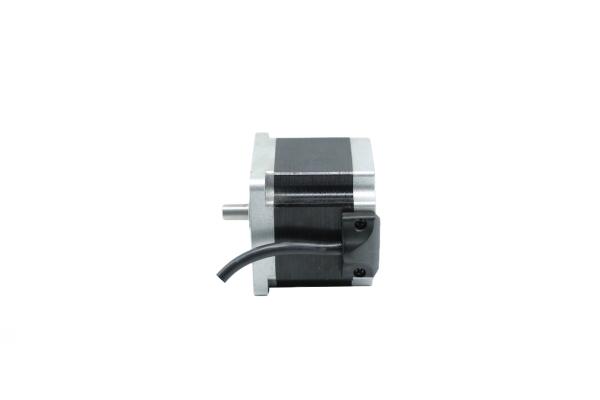

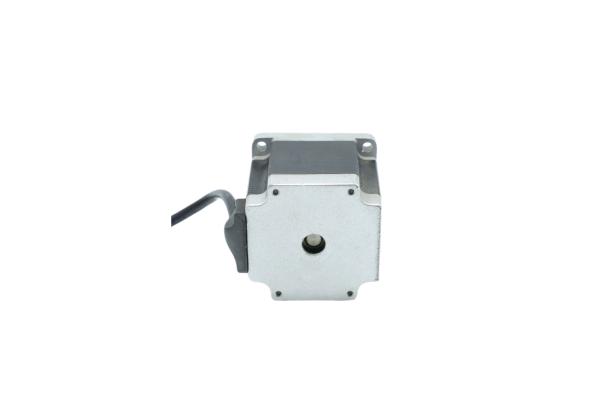

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Specifications
Brand Name :
HeTai
Model Number :
60BYGH406-03
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product name :
Hybrid stepping motor
Step Accuracy :
± 5%
Inductance :
4.3 mH
Insulation Resistance :
100MΩ Min.500VC DC
Ambient Temperature :
-20℃~+50℃
Temperature Rise :
80 ℃ Max
Dielectric Strength :
500VAC 1 minute
Max Radial Force :
75N (20mm from front flange)
Max Axial Force :
15N
Motor length :
56mm
Description

60BYGH406-03 High Torque Output 1.8 Degree 11 Kg.cm Stepping Motor

As a stepper motor manufacturer who has over 20 years of expertise, Hetai is confident of abundant industrial experience serving customers who require stepper motors for application of robotics, packing, textile, medical, printing, and among many others. Please let us know your performance and operational requirements, such as size, load, torque, and other specifics. Then we can provide you more suitable solutions.

Electrical Specification

Model Number

60BYGH406-03

Step Accuracy

± 5%

Step Angle

1.8°

Lead Wire

6

Voltage (V)

5.8

Current (A/Phase)

1.8

Holding Torque (Kg.cm)

11

Resistance (Ω/phase)

3.2

Inductance (mH/phase)

4.3

Motor length (MM)

56

Motor Weight(Kg)

0.77

Insulation Class

B

*Products can be customized by special request.

Wiring Diagram

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v

Mechanical Dimension

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Specification of Other Models:
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(KG.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
60BYGH402-13A 1.8 6 2.4 3.0 0.8 1.6 10 56 0.77
60BYGH410-05A 1.8 4 6.0 1.0 6.0 16 12.5 56 0.77
60BYGH502-03A 1.8 4 5.32 1.4 3.8 10 12.5 64 1.00
60BYGH500 1.8 6 3.6 1.5 8.4 8.0 12.5 64 1.00
60BYGH805-56 1.8 4 2.8 4.0 0.8 3.5 23.5 87 1.34
60BYGH808A 1.8 4 4.5 3.0 1.5 5.0 26 87 1.34

*Products can be customized by special request.

*Products can match gearbox 52.56mm

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
