Specifications
Brand Name :
HeTai
Model Number :
57BYGH350B-002
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product name :
Hybrid stepping motor
Step Accuracy :
± 5%
Insulation Resistance :
100MΩ Min.500VC DC
Ambient Temperature :
-20℃~+50℃
IP level :
IP40
Temperature Rise :
80 ℃ Max
Max Radial Force :
75N (20mm from front flange)
Max Axial Force :
15N
Dielectric Strength :
500VAC 1 minute
Voltage :
5.28V
Description

57BYGH350B-002 0.6 Degree 3-phase 0.7 NM 2mH micro DC Nema 23 stepper motor

57BYGH350 series is a type of 3 phase stepper motor, the step angle can be made as 0.6°or 1.2°. The lead wire number is 6. It has a high torque output of 0.7 Nm. To compare with 2 phase 1.8 degree stepper motor, 3 phase motor is more stable & smooth in performance and operation. In addition, the three phase stepper motor need a special driver made especially for 3 phase.

Electrical Specification
Model Number
 57BYGH350B-002
Step Accuracy
± 5%
Step Angle
0.6°/1.2°
Lead Wire
 6
Voltage (V)
5.28
Current (A/Phase)
2.4
Holding Torque (N.m)
0.7
Resistance (Ω/phase) 2.2
Inductance (mH/phase) 2
Motor length (MM) 56
Motor Weight(Kg) 0.75
Insulation Class B

*Products can be customized by special request.

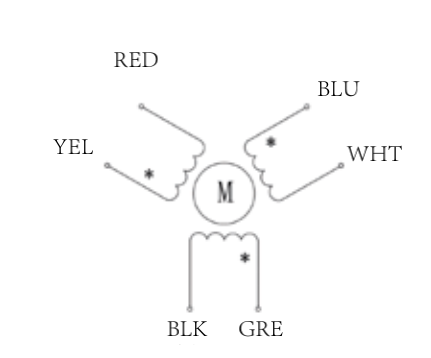

Wiring Diagram

6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V
Mechanical Dimension
6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(KG.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
57BYGH350A-001 1.2 6 3.12 2.4 3.4 4.0 4.0 41 0.45
57BYGH350A-002 1.2 3 5.0 0.5 10 16 2.0 41 0.45
57BYGH350B-001 1.2 3 2.52 5.6 0.45 1.1 9.0 56 0.69
57BYGH350B-002 1.2 6 5.28 2.4 2.2 2 7.0 56 0.75
57BYGH350C-001-09 1.2 3 2.6 5.2 0.5 1.4 12 76 1.05
57BYGH350C-005-01 1.2 3 9.0 1.0 9.0 21 9 76 1.10

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56

Hetai is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
