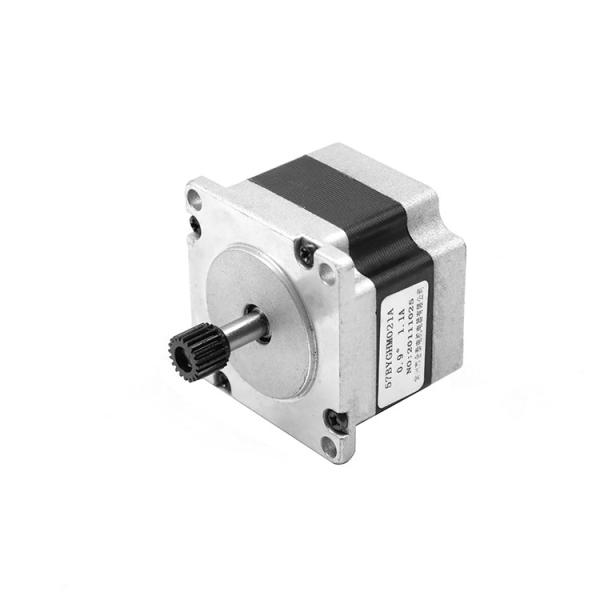

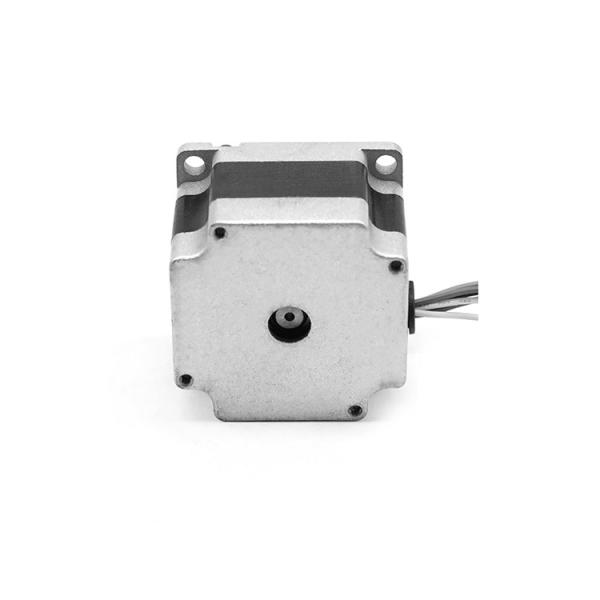

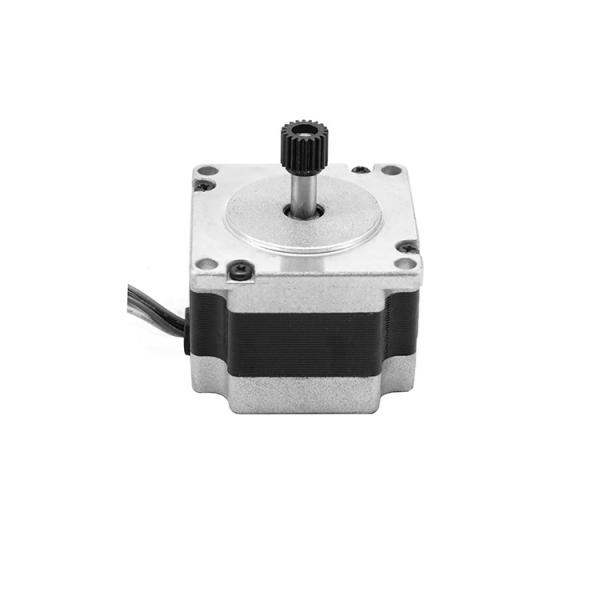

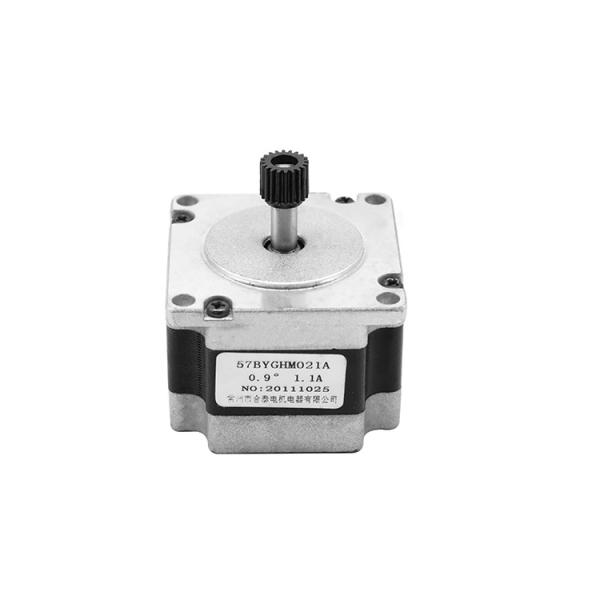

41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
Specifications
Brand Name :
HeTai
Model Number :
57BYGHM021A
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product name :
Hybrid stepping motor
Temperature Rise :
80 ℃ Max
Ambient Temperature :
-20℃~+50℃
Step Accuracy :
± 5%
Dielectric Strength :
500VAC 1 minute
Insulation Resistance :
100MΩ Min.500VC DC
Max Radial Force :
75N (20mm from front flange)
Max Axial Force :
15N
Description

57BYGHM021A CE ROHS ISO 41mm High Torque Hybrid Step Motor Nema 17 Customization

Construction & Working Principle

The construction of a stepper motor is fairly related to a DC motor. It includes a permanent magnet like Rotor which is in the middle & it will turn once force acts on it. This rotor is enclosed through a no. of the stator which is wound through a magnetic coil all over it. The stator is arranged near to rotor so that magnetic fields within the stators can control the movement of the rotor.

Electrical Specification:

Model Number
 57BYGHM021A
Step Accuracy
± 5%
Step Angle
0.9°
Lead Wire
 4
Voltage (V)
4
Current (A/Phase)
1.1
Holding Torque (N.m)
0.35
Resistance (Ω/phase) 1.4
Inductance (mH/phase) 2.0
Motor length (MM) 41
Motr Weight(K/g) 0.45
Insulation Class B


*Products can be customized by special request.

Wiring Diagram

41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
Mechanical Dimension
41mm High Torque Hybrid Step Motor Nema 17 0.35nm 280 oz stepper motor 57BYGHM021A
Specification of Other Models:
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(KG.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
57BYGHM002-01 0.9 6 2.8 2.0 1.4 2.0 3.5 41 0.45
57BYGHM200-03A 0.9 4 3.4 1.0 3.4 12 7.0 51 0.56
57BYGHM203-04 0.9 6 12 0.38 32.0 38 5.5 51 0.56
57BYGHM401-09 0.9 6 7.4 1.0 7.4 17 9.0 56 0.70
57BYGHM414 0.9 4 1.7 4.2 0.4 1.0 11 56 0.70
57BYGHM604-17 0.9 4 3.2 2.8 1.13 6.4 15 78 1.00
57BYGHM601-05 0.9 6 8.6 1.0 8.6 20 13 78 1.00

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China
