42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
Specifications
Brand Name :
HeTai
Model Number :
42BYGH808-08
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product name :
Hybrid stepping motor
Ambient Temperature :
-20℃~+50℃
Dielectric Strength :
500VAC 1 minute
Temperature Rise :
80 ℃ Max
Step Accuracy :
± 5%
Insulation Resistance :
100MΩ Min.500VC DC
Inductance :
13 mH
Voltage :
7.2V
Description

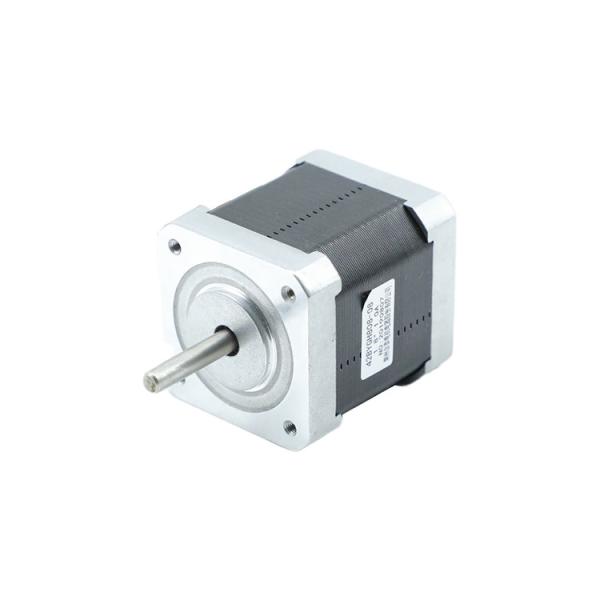

42BYGH808-08 2 phase customizable NEMA 17 1.8 degree 7.2V 3kg.cm hybrid stepper motor

Voltage: 4.6 V

Inductance: 4±20% MH

Product Name: Hybrid Stepping Motor

Ambient Temperature: -20℃~+50℃
Dielectric Strength: 500VAC 1 Minute

Temperature Rise: 80 ℃ Max
Step Accuracy: ± 5% Insulation

Insulation Resistance​: 100MΩ Min.500VC DC

Electrical Specification

Model Number

42BYGH808-08

Step Accuracy

± 5%

Step Angle

1.8°

Lead Wire

8

Voltage (V)

4.6

Current (A/Phase)

1.2

Holding Torque (N.m)

0.35

Resistance (Ω/phase)

4.6±10%

Inductance (mH/phase)

4±20%

Motor length (MM)

48

Motor Weight(Kg)

0.34

Insulation Class

B

*Products can be customized by special request.

Wiring Diagram
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
Mechanical Dimension
42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
Specification of Other Models:
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(G.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
42BYGH208-52A 1.8 4 12 0.4 30 42 2500 34 0.20
42BYGH243-03 1.8 4 2.6 1 2.6 3.2 1800 34 0.20
42BYGH622-28A 1.8 4 4.8 1 4.8 6.0 2900 40 0.24
42BYGH613-68A 1.8 4 2.5 1.7 1.5 2.5 3500 40 0.24
42BYGH705-07 1.8 4 12 0.3 40 80 4000 44 0.30
42BYGH721A 1.8 6 10 0.25 40 36 2000 44 0.30
42BYGH801-36 1.8 6 12 0.4 30 22 3800 48 0.34
42BYGH872A 1.8 4 2.8 1.7 1.65 2.8 4500 48 0.34
42BYGH910-02 1.8 4 5.1 1.5 3.4 8.0 8500 60 0.49
42BYGH905-13 1.8 4 3.15 1.5 2.1 5.0 6800 60 0.49

*Products can be customized by special request.

*Products can match gearbox 36.42

Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase

42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase

The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ball screws. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices
