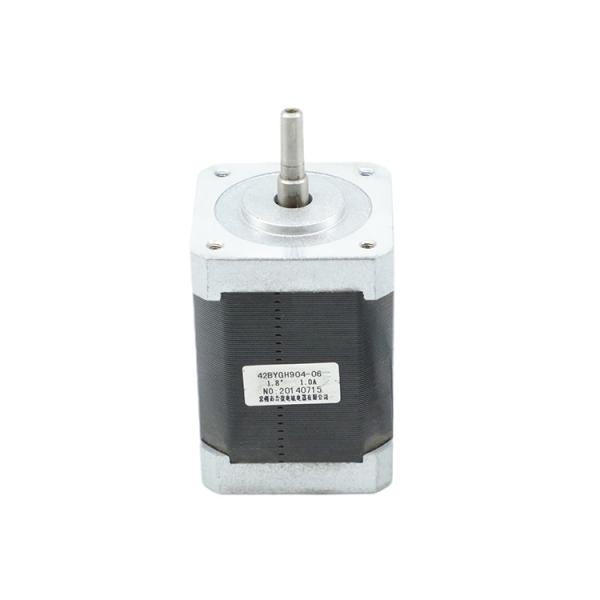

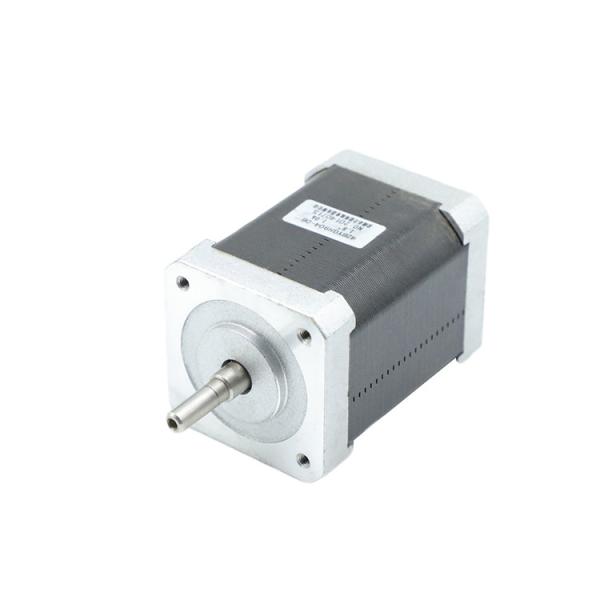

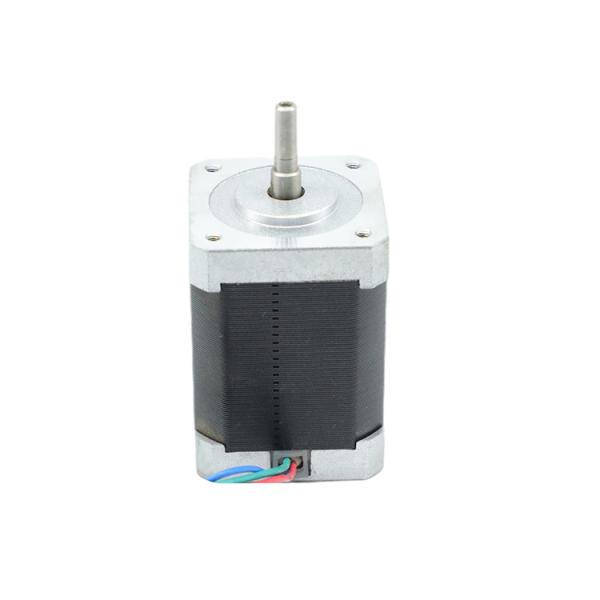

Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Specifications
Brand Name :
HeTai
Model Number :
42BYGH904-06
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product name :
Hybrid stepping motor
Temperature Rise :
80 ℃ Max
Ambient Temperature :
-20℃~+50℃
Motr Weight :
0.49kg
Insulation Resistance :
100MΩ Min.500VC DC
Step Accuracy :
± 5%
Dielectric Strength :
500VAC 1 minute
Motor length :
60mm
Max Radial Force :
28N (20mm from front flange)
Max Axial Force :
10N
Description

42BYGH904-06 Electric DC two phase 1.8 degree 0.7 Nm 1 A 12mH Nema 17 Stepping Motor

The 2 phase NEMA 17 stepper motor has the following advantage:

1. Hetai step motor has better precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5%. Meanwhile. the error is noncumulative from one step to the next.

2.Excellent response to actions like starting/stopping/reversing.

3. Compare to the brush motor, the stepper motor is more reliable and sustainable. In addition, the life of the motor simply depends on the life of the bearing.

Electrical Specification:

Model Number
 42BYGH904-06
Step Accuracy
± 5%
Step Angle
1.8°
Lead Wire
 4
Voltage (V)
5.4
Current (A/Phase)
1
Holding Torque (N.m)
0.70
Resistance (Ω/phase) 5.4
Inductance (mH/phase) 12
Motor length (MM) 60
Motor Weight(Kg) 0.49
Insulation Class B

*Products can be customized by special request.

*Wiring Diagram
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
*Mechanical Dimension
Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH
Specification of Other Models:
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(G.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
42BYGH208-52A 1.8 4 12 0.4 30 42 2500 34 0.20
42BYGH243-03 1.8 4 2.6 1 2.6 3.2 1800 34 0.20
42BYGH622-28A 1.8 4 4.8 1 4.8 6.0 2900 40 0.24
42BYGH613-68A 1.8 4 2.5 1.7 1.5 2.5 3500 40 0.24
42BYGH705-07 1.8 4 12 0.3 40 80 4000 44 0.30
42BYGH721A 1.8 6 10 0.25 40 36 2000 44 0.30
42BYGH801-36 1.8 6 12 0.4 30 22 3800 48 0.34
42BYGH872A 1.8 4 2.8 1.7 1.65 2.8 4500 48 0.34
42BYGH910-02 1.8 4 5.1 1.5 3.4 8.0 8500 60 0.49
42BYGH905-13 1.8 4 3.15 1.5 2.1 5.0 6800 60 0.49

*Products can be customized by special request.

*Produdts can match gearbox 36.42

Nema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mHNema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mHNema 17 Two Phase Stepper Motor 620 oz 42mm 5.4v 1.8 Degree 0.7 Nm 1 A 12mH

1. Are you a factory?

Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.

2. Can I test the sample?

Yes, samples and freight are charged.

3. Can I get a Customized product?

Sure, all the products can be customized based on special requests.

4. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

5. What are the payment terms?

T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

6. Is this your final price? May I have the discount?

Our price is the factory price. If you have a large quantity, we can negotiate about the discount.

7. What is the Warranty for your products?

Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
