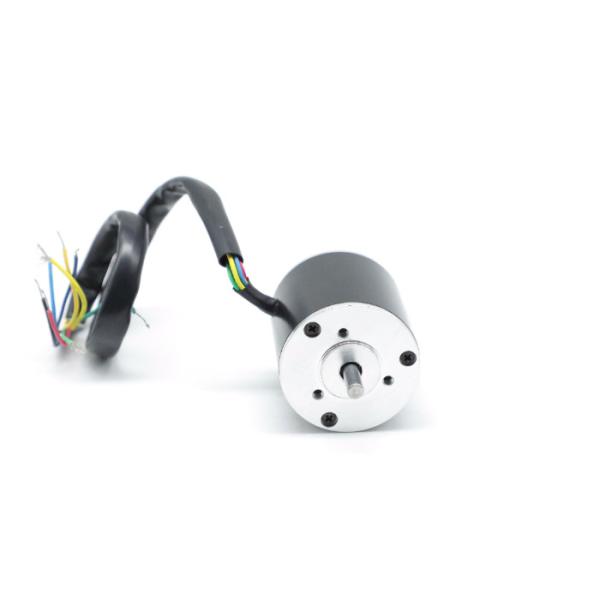

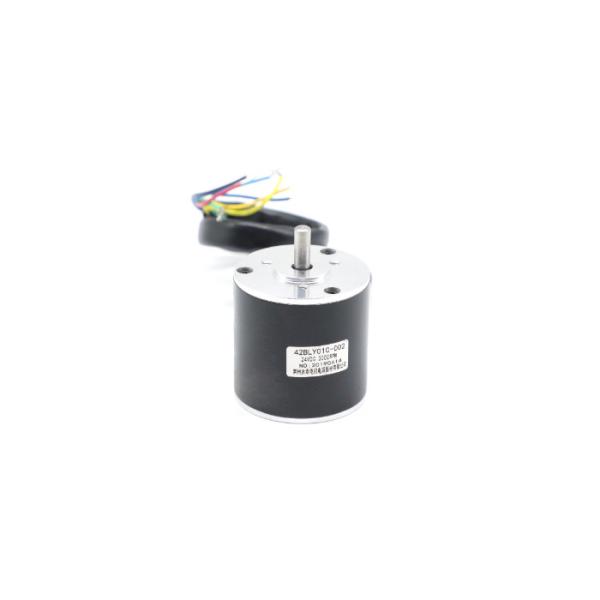

0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
Specifications
Brand Name :
HeTai
Model Number :
42BLY
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Brushless DC Motor
No Of Poles :
4 Poles
No.of Phase :
3 Phase
Power :
41W
Winding Type :
Star
Rated Voltage :
24V
Max Axial Force :
10N
Hall Effect Angle :
120° Electrical Angle
Insulation Class :
B
MAX Radial Force :
28N (10mm From Front Flange)
Dielectric Strength :
600VAC 1 Minute
Insulation Resistance :
100MΩ Min.500VC DC
Description

42mm Nema 17 Brushless DC Motor 2.53A 41W 4Pole 24V 3Phase 0.39Nm 3000RPM

The 42BLY series is one of the most regular brushless motors applied in the automation industry.

Our 42BLY series brushless motor have the following advantages.One big advantage is efficiency, as these motors can control continuously at maximum rotational force (torque). Brushed motors, in contrast, reach maximum torque at only certain points in the rotation. For a brushed motor to deliver the same torque as a brushless model, it would need to use larger magnets. This is why even small BLDC motors can deliver considerable power.The second big advantage—related to the first—is controllability.

Electrical Specification Of Brushless DC Motor

Model Model Model
Specification Unit 42BLY01C 42BLY02 42BLY302-001
Number Of Phases Phase 3 3 3
Number Of Poles Poles 4 4 4
Rated Voltage VDC 24 24 24
Rated Speed Rpm 3000 3000 3000
Rated Current A 0.63 1.77 2.53
Rated Torque N.m 0.035 0.08 0.13
Rated Power W 11 25 41
Peak Torque N.m 0.105 0.24 0.39
Peak Current Amps 1.9 5.3 7.6
Torque Constant N.m/A 0.054 0.045 0.051
Back EMF constant V/kRPM 5.7 4.7 5.3
Body Length mm 42 60 78
Weight Kg 0.25 0.38 0.56

You can download our 42BLY Brushless DC Motor product brochure:42BLY.pdf

ELECTRICAL CONNECTION TABLE
FUNCTION COLOR
+5V RED UL1007 26AWG
HALL A YELLOW
HALL B GREEN
HALL C BLUE
GND BLACK
PHASE A YELLOW UL3265 22AWG
PHASE B GREEN
PHASE C BLUE



Mechanical Dimension Of Brushless DC Motor

0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W

0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W

Hetai is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.

Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!

0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

Certification

0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W0.39Nm Nema 17 Brushless DC Motor 42mm 4Pole 24V 3Phase 3000RPM 2.53A 41W
