Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
Specifications
Brand Name :
HeTai
Model Number :
110BYGH
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Hybrid Stepper Motor
Step Angle :
1.8 °
Current :
5.5A-8A
Rated Voltage :
4.8V-9V
No. Of Leads :
4
Step Accuracy :
±5%
Insulation Resistance :
100MΩ Min.500VC DC
Dielectric Strength :
500VAC 1 Minute
MAX Radial Forcece :
330N (20mm From Front Flange)
MAX Axial Force :
100N
Description

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

Advantages:

1. The rotation angle of the motor is proportional to the input pulse.

2. The motor has full torque at a stand still(if the windings are energized)

3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.

4. Excellent response to starting/stopping/reversing.

5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.

6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.

7. It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.

8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Electrical Specification Of Hybrid Stepper Motor

MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(N.M)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
110BYGH80-001AG 1.8 4 9.0 6.0 1.5 14.0 8.5 80 5.0
110BYGH99-001-10 1.8 4 4.95 5.5 0.9 12.0 11.2 99 5.0
110BYGH150-001 1.8 4 5.44 6.8 0.8 12.0 21 150 8.4
110BYGH165-001-03 1.8 4 4.80 6.0 0.8 14.0 24 165 9.5
110BYGH201-001 1.8 4 5.36 8.0 0.76 16.0 30 201 12.0

You can download our 110BYGH Hybrid Stepper Motor product brochure:110BYGH.pdf

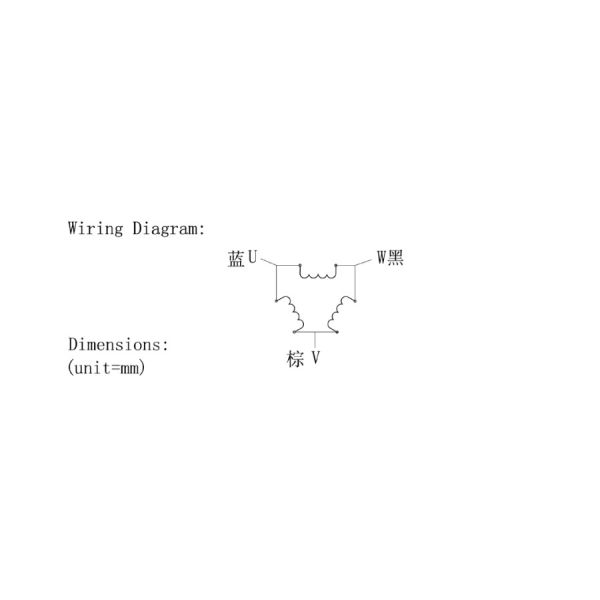

Wiring Diagram

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A


Mechanical Dimension Of Hybrid Stepper Motor

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

History Of Hetai

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

Hetai was established in 1998.

The company also attained import and export right of In the year 2003, Hetai was qualified by ISO9001/TS 16949 Certificate, and passed

Invention Patent, seven Utility Patent, and one Appearance Design Patent.
In 2005, Hetai has qualified by EU Type Examination Certificate and get four
Hetai was quoted on the stock market in 2015.
in next year 2016. Hetai was authenticated by safety standardization management system
The company was qualified as high-tech enterprise in 2018.

Market Range of Hetai

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

Assembly Line Of Stepper Motor


Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

Packing&Delivery

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A

Certification

Nema 42 110mm High Performance Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 8A
