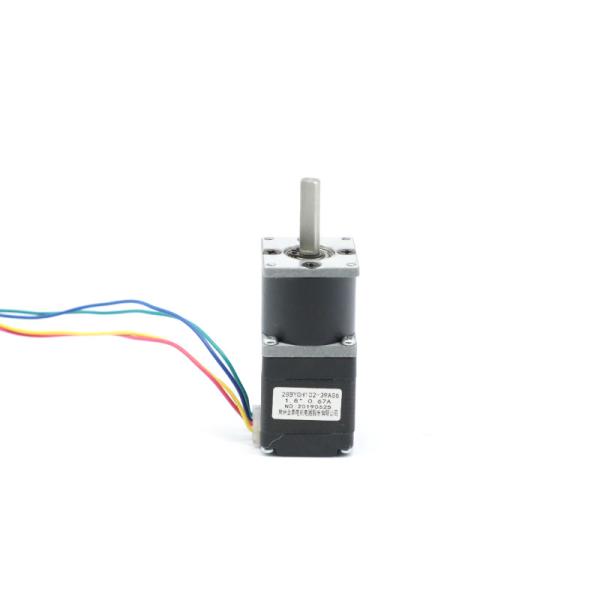

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
Specifications
Brand Name :
HeTai
Model Number :
28BYGH
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Hybrid Stepper Motor
Step Angle :
1.8 °
No. Of Leads :
4 Or 6
Rated Voltage :
3.9-8.04V
Max Axial Force :
10N
MAX Radial Force :
28N (10mm From Front Flange)
Dielectric Strength :
500VAC 1 Minute
Insulation Resistance :
100MΩ Min.500VC DC
Temperature Rise :
80 ℃ Max
Description

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

The hybrid stepper motor is an electronically commutated brushless synchronous rotating electrical machine that defines incremental motion. Thanks to its remarkable precision and versatility, in recent years it has been the subject of increasing industrial applications. To obtain stepper motors with better performance, software modelling, finite element simulations and iterative optimizations by means of genetic algorithms were performed. The software used to carry out these simulations were Altair Flux 2D, Flux 3D and Hyperstudy. The computational complexity of the model obtained and the hardware tools available have imposed a magneto-static and non-transient analysis. Despite this simplification, it was necessary to proceed with a probabilistic "design of experiments" approach and a specific mathematical model before developing the optimization that otherwise would have been enormously expensive in terms of time and memory space.

Electrical Specification Of Hybrid Stepper Motor

MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(G.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
28BYGH102-01 1.8 4 3.90 0.67 6.3 3.2 600 32 0.11
28BYGH105-01 1.8 6 3.1 0.95 3.3 1.0 430 32 0.11
28BYGH301 1.8 4 4.56 0.67 6.8 4.9 950 45 0.17
28BYGH303 1.8 6 3.40 0.95 3.4 1.0 750 45 0.14
28BYGH501 1.8 4 8.04 0.67 12.0 7.2 1200 51 0.19
28BYGH502 1.8 6 3.80 0.95 4.0 1.3 900 51 0.20

You can download our 28BYGH Hybrid Stepper Motor product brochure:28BYGH.pdf

Wiring Diagram

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires


Mechanical Dimension Of Hybrid Stepper Motor

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

Materials Of HeTai

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

Hetai purchases high-quality raw materials, regardless of cost, only to produce high-quality and high-performance products.

Automatic Assembly Line

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

Laser Welding Machine

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires

Hetai is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.

Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!

Certification Of Hybrid Stepper Motor

Nema 11 Hybrid Stepper Motor Low Noise 28mm 1.8 Step Angle 4 Leads 6 Wires
