1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
Specifications
Brand Name :
HeTai
Model Number :
42BYGH
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Hybrid Stepper Motor
Step Angle :
1.8 °
Number Of Leads :
4,6
Rated Voltage :
2.5-12V
Max Axial Force :
10N
MAX Radial Force :
28N (20mm From Front Flange)
Dielectric Strength :
500VAC 1 Minute
Insulation Resistance :
100MΩ Min.500VC DC
Temperature Rise :
80 ℃ Max
Step Accuracy :
±5%
Description

Nema 17 42mm Low Noise Hybrid Stepper Motor 1.8 Step Angle 4 Leads 6 Wires 12V 1.7A

The Hybrid stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees.

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 17 Hybrid Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

Electrical Specification Of Hybrid Stepper Motor

MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(G.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
42BYGH208-52A 1.8 4 12 0.4 30 42 2500 34 0.20
42BYGH243-03 1.8 4 2.6 1 2.6 3.2 1800 34 0.20
42BYGH622-28A 1.8 4 4.8 1 4.8 6.0 2900 40 0.24
42BYGH613-68A 1.8 4 2.5 1.7 1.5 2.5 3500 40 0.24
42BYGH705-07 1.8 4 12 0.3 40 80 4000 44 0.30
42BYGH721A 1.8 6 10 0.25 40 36 2000 44 0.30
42BYGH801-36 1.8 6 12 0.4 30 22 3800 48 0.34
42BYGH872A 1.8 4 2.8 1.7 1.65 2.8 4500 48 0.34
42BYGH910-02 1.8 4 5.1 1.5 3.4 8.0 8500 60 0.49
42BYGH905-13 1.8 4 3.15 1.5 2.1 5.0 6800 60 0.49

You can download our 42BYGH Hybrid Stepper Motor product brochure:42BYGH.pdf

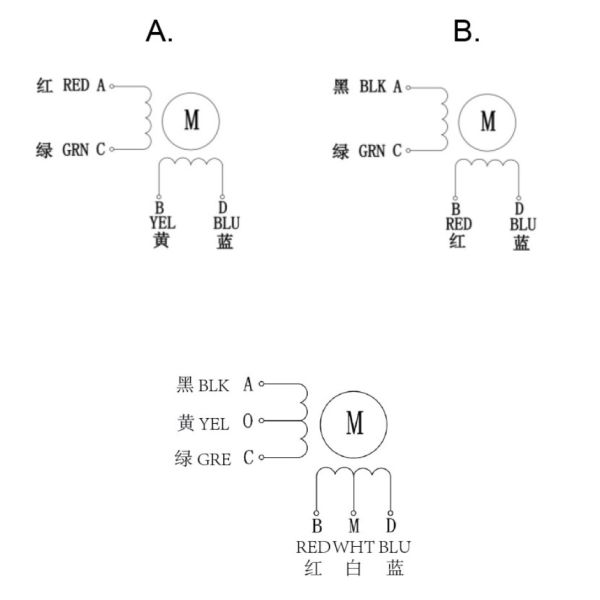

Wiring Diagram

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A


Mechanical Dimension Of Hybrid Stepper Motor

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A

Automatic Assembly Line

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A

Automatic Multi-head Machine

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A

Hetai is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.

Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!

Certification Of Hybrid Stepper Motor

1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 42mm 12V 1.7A
