Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
Specifications
Brand Name :
HeTai
Model Number :
60BYGH
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Hybrid Stepper Motor
Step Angle :
1.8 °
Rated Voltage :
2.4V-6V
Current :
1.0A-4.0A
Number Of Leads :
4 or 6
Dielectric Strength :
500VAC 1 Minute
Step Accuracy :
±5%
Insulation Resistance :
100MΩ Min.500VC DC
MAX Radial Forcece :
75N (20mm From Front Flange)
MAX Axial Force :
15N
Description

Factory Direct Sale Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 or 6 Lead Wire 6V 4A

The hybrid stepper motor can be controlled by energizing every stator one by one. So the stator will magnetize & works like an electromagnetic pole that uses repulsive energy on the rotor to move forward. The stator’s alternative magnetizing as well as demagnetizing will shift the rotor gradually & allows it to turn through great control.

The stepper motor working principle is Electro-Magnetism. It includes a rotor which is made with a permanent magnet whereas a stator is with electromagnets. Once the supply is provided to the winding of the stator then the magnetic field will be developed within the stator. Now rotor in the motor will start to move with the rotating magnetic field of the stator. So this is the fundamental working principle of this motor.

Electrical Specification Of Hybrid Stepper Motor

MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(KG.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
60BYGH402-13A 1.8 6 2.4 3.0 0.8 1.6 10 56 0.77
60BYGH410-05A 1.8 4 6.0 1.0 6.0 16 12.5 56 0.77
60BYGH502-03A 1.8 4 5.32 1.4 3.8 10 12.5 64 1.00
60BYGH500 1.8 6 3.6 1.5 8.4 8.0 12.5 64 1.00
60BYGH805-56 1.8 4 2.8 4.0 0.8 3.5 23.5 87 1.34
60BYGH808A 1.8 4 4.5 3.0 1.5 5.0 26 87 1.34

You can download our 60BYGH Hybrid Stepper Motor product brochure:60BYGH.pdf

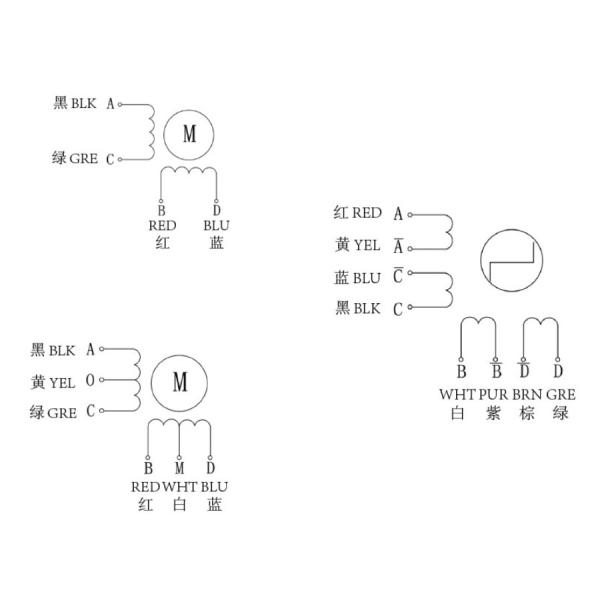

Wiring Diagram

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A


Mechanical Dimension Of Hybrid Stepper Motor

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

Market Range of Hetai

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada

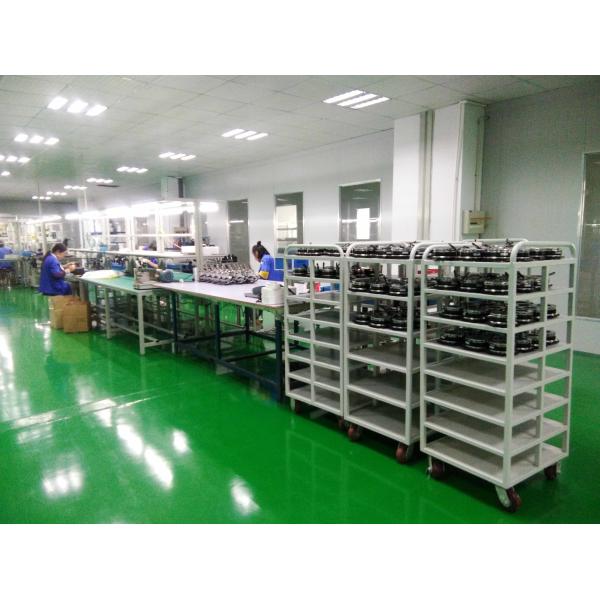

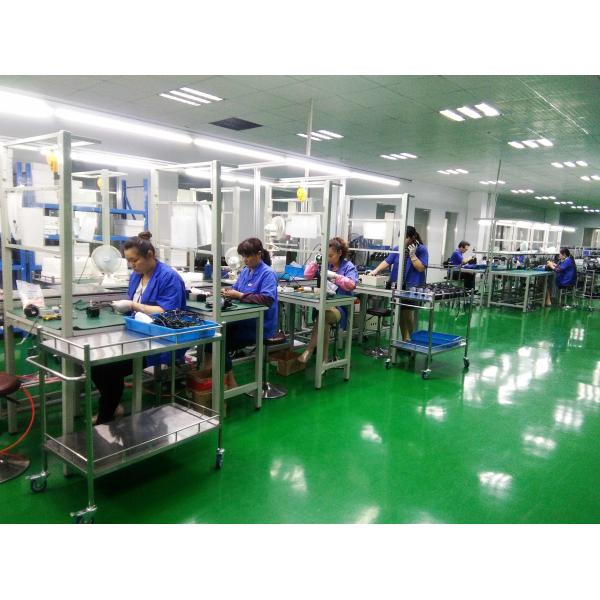

Factory Scale

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4ANema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

Inspection Equipment

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

Packing&Delivery

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A

Certificate Of Hetai

Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire 6V 4A
