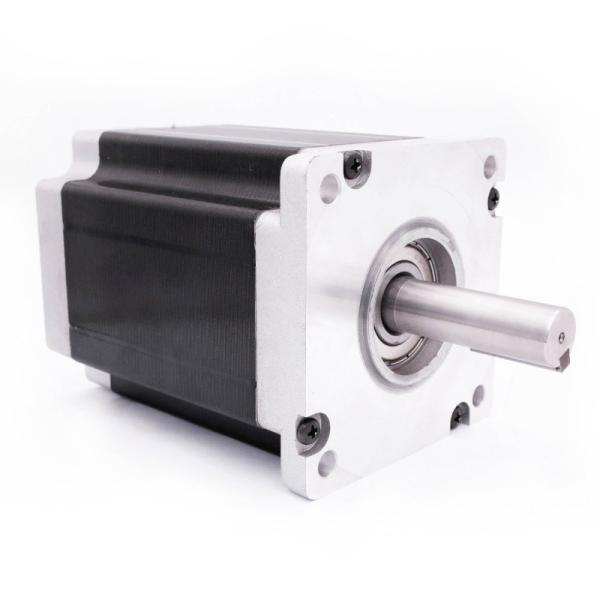

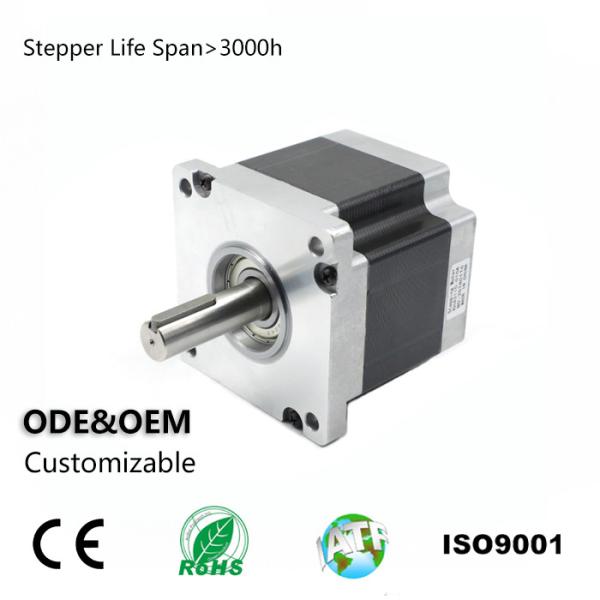

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
Specifications
Brand Name :
HeTai
Model Number :
110BYGH80-001AG
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/MONTH
Delivery Time :
28-31 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Hybrid Stepper Motor
Step Angle :
1.8 °
Rated Voltage :
9.0V
Rated Current :
6.0A
Holding Torque :
8.5 N.M
Lead Wire :
4
Resistance :
1.5Ω
Inductance :
14.0 mH
Motor Height :
80 mm
Motor Weight :
5.0 Kg
Description

Bulk selling 110BYGH80-001AG high performance Nema42 110mm hybrid stepper motor 1.8 Step Angle 4 Lead 9V 6.0A 8.5N.M

What is a Hybrid Stepper Motor?
A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors. The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor. Both the stator and rotor are multi-toothed.

A hybrid stepper motor has an axially magnetized rotor, meaning one end is magnetized as a north pole, and the other end a south pole. Toothed rotor cups are placed on each end of the magnet, and the cups are offset by half of a tooth pitch.

Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
4
Voltage (V)
9.0
Current (A/Phase)
6.0
Holding Torque (N.M)
8.5




Mechanical Dimension Of Hybrid Stepper Motor

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

Market Range of Hetai

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada

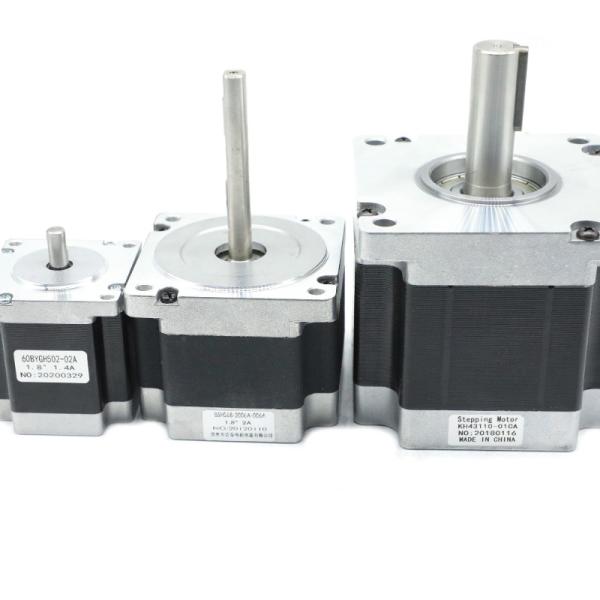

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Products Annual Capacity
Hybrid stepper motor 3 million units
Brushless DC motor 2 million units
Servo motor 0.05 million units
Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.

CNC Center

Hetai new exhibition hall

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

High Level Testing Equipment

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

Packing&Delivery

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.

Hybrid Stepper Motor Certification

110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M110BYGH80-001AG Nema42 Hybrid Stepper Motor 1.8 Degree 4 Lead 9V 6.0A 8.5N.M
