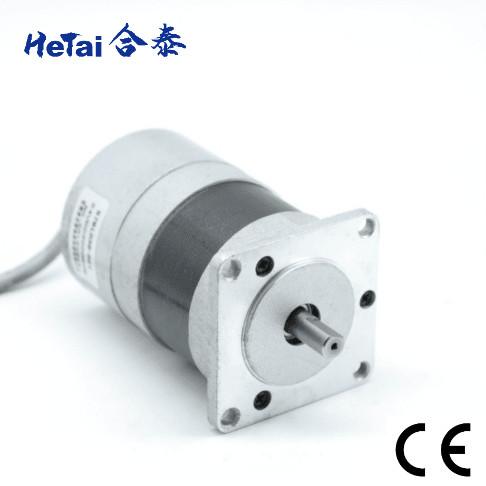

Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
Specifications
Brand Name :
HeTai
Model Number :
57BL03B-021
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
50
Price :
USD
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Carton with Inner Foam Box, Pallet
Product Name :
Brushless DC motor
Winding Type :
Star
Hall effect angle :
120° Electrical angle
Nominal Voltage :
24 VDC
Resistance :
0.8 OHMS
Insulation Class :
B
No-load Speed :
3800± 10%
No-load Current :
0.5 AMPS
Rated Speed :
3000± 10%
Rated Torque :
0.18 N.m
Ambient Temperature :
-20℃~+50℃
Max Radial Force :
75 N (10mm from front flange)
Max Axial Force :
15 N
IP level :
IP40
Description

57mm 24V Multi-metal 56W57BL03B-021 High QualityBrushless Dc Motor Nema 23

Brushless dc motors have significantly higher efficiency and performance, and a lower susceptibility to mechanical wear than their brushed counterparts. So if you're someone who does a fair amount of serious projects that require a drill, going with a brushless could make a lot of sense. It'll give you higher speeds and power, and require less maintenance.

The 57BL series is a cylindrical BLDC motor. The speed range is from 2500 rpm-3000 rpm, and the rated torque is from 0.057 NM to 0.44 NM.

The advantage of the 57 series is that:
● Excellent speed stability
● Compact and high power
● High efficiency and energy saving
● Low temperature rise, low noise, low vibration
● Long life and low maintenance cost

Electrical Specification

Specification Unit 57BL03B-021
Nominal Voltage VDC 24
Resistance OHMS 0.8
Rated Speed Rpm 3000± 10%
Rated Torque N.m 0.18
No-load Speed Rpm 3800± 10%
No-load Current Amps 0.5
Torque Constant N.m/A 0.06
Back EMF constant V/kRPM 6.3
Insulation Class B

Wiring Diagram

ELECTRICAL CONNECTION TABLE
FUNCTION COLOR

+24V

 RED
GND BLACK
AVI BLUE
DIR YELLOW

Mechanical Dimension

Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021

Technial Specification

Model Model Model Model Model Model
Specification Unit 57BL01G 57BL02A 57BL03B 57BL04A 57BL05A 57BL06
Number Of Phases Phase 3 3 3 3 3 3
Number Of Poles Poles 4 4 4 4 4 4
Rated Voltage VDC 24 24 24 24 24 24
Rated Speed Rpm 2500 3000 3000 3000 3000 3000
Rated Current A 0.77 1.87 3.17 3.67 5.33 7.00
Rated Torque N.m 0.057 0.11 0.18 0.22 0.33 0.44
Rated Power W 15 34.5 56 69 104 138
Peak Torque N.m 0.17 0.33 0.54 0.66 0.99 1.32
Peak Current Amps 2.3 5.6 9.5 11 16 21
Torque Constant N.m/A 0.074 0.059 0.057 0.060 0.062 0.063
Back EMF constant V/kRPM 7.75 6.2 5.9 6.3 6.5 6.6
Body Length mm 41.5 46.5 56.5 66.5 86.5 106.5
Weight Kg 0.35 0.44 0.56 0.67 0.95 1.18

*Products can match gearbox 42,52,56

*Products can be customized by special request.

Product Range

Product Name External Diameter Voltage Range Power Range Power Range Rated torque
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021 Sever Motor 40 mm-130 mm 24V, 36V, 48V, 310V 100 W-3000 W 0.12 N.m-20 N.m
Product Name External Diameter Rated Tolerance Torque Momentary Tolerance Torque Efficiency
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021 Planetary Gearbox&Gearbox Motor 22 mm-63 mm 0.1 N.m-20 N.m 0.3 N.m-60 N.m 65 %, 72%, 81%
Product Name External Diameter Speed Range Power Range Rated torque
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021 Dc Brushless Motor 28 mm-110 mm 300 Rpm-10000 Rpm 8 W-2000 w 0.02 N.m-6.5 N.m
Product Name External Diameter Step angle Holding Torque Inductance Range
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021 Stepping Motor 28 mm-110 mm 0.9, 1.2, 1.8 1 Kg.cm-33 Kg.cm 1 mh-42 mh

Brushless Motor Final Inspection

Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021

Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle

Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021

Measure the Screw Hole Measure the Length of Wire Measure the Length of PVC

Distance

Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021

Test the Resistance Listening Test the speed

Certificate

Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021 Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021 Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021

Stepper motor ROHS report

Date: June 09, 2021

BLDC Motor ROHS report

Date: June 09, 2021

CE cetificate
Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021 Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
IATF 16949: 2016
Valid until: 02 June 2024
ISO 9001: 2015
Valid until: 02 June 2024
