Product features

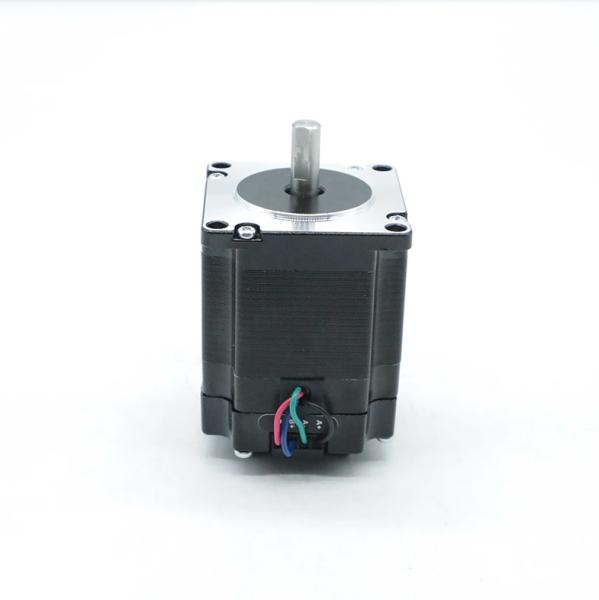

Thank you for choosing our IC57E integrated motor product. The IC57E series integrated motor is a perfect combination of drive and stepper motor.

It perfectly integrates stepper motor, encoder and drive technology, which not only saves installation space, but also reduces wiring complexity.

Simple, it saves you design costs and production costs, and is your first choice when using stepper system solutions. The IC series also inherits the EC series products.

It has the excellent features of integrating control and drive. It can be controlled by external pulse and built-in programmable control.

Product features

※ Working voltage range: 24-60V
※ Drive output current: 0.5~6.5A
※ Control mode
Position mode: pulse direction control, double pulse control, host computer command control.
Speed ​​mode: I/O control speed mode, host computer command control.
※ Communication method:TTL
※ Output torque range: 0.8~3.0N.M
※ 1000-line encoder feedback
※ 3 digital inputs, high level can directly receive 3.3~24V DC level, maximum frequency 300KHZ
1 set of independent digital output, collector OC output, maximum withstand voltage 30V, maximum sink or output current 50mA
※ Step-Config software can be used for real-time monitoring, built-in programming, etc.

Product Function Box

Drive parameters and product selection

Applications:

Stepper motors are widely used in various fields, including:

control of drug delivery pumps, precision surgical instruments, and positioning systems in imaging devices.

2. Precision Instruments: Widely applied in laboratory equipment, optical devices, and measuring 1. Medical Devices: They are extensively utilized in medical devices for precise instruments to achieve precise motion control and positioning.

3. Consumer Electronics: Stepper motors are employed in automatic focusing cameras, 3D printers, precision electronic regulators, and small household robots among other consumer electronics products.

4. Automotive and Aerospace: They are used to control engine valves in automobiles, precise control systems in aerospace components, and servos in aircraft and drones.

These are just a few examples of stepper motor applications. Their high precision, reliability, and flexibility make them an indispensable part of many industries. More applications and functions await exploration!

Customization:

When it comes to customizing motor products, customers may need to meet specific application requirements or space limitations. Here are some customization options:

Wire Customization:

Customers may require wires of specific lengths or types to fit their particular installation scenarios or electrical layouts. Customized wires can ensure better connectivity and reliability.

Flange Customization:

Flanges are critical components that connect motors to external mechanical systems. According to customer requirements, flanges can be customized to fit specific installation dimensions, bolt hole layouts, or special material requirements.

Shaft Customization:

Customers may need customized shafts to adapt to specific connection requirements or to fit with other mechanical components.

Screw Customization:

Screws are crucial components in some motor systems, such as stepper motors or linear actuators. Customers may require customized screws to meet specific pitch, diameter, material, or corrosion resistance requirements.

Encoder Customization:

Encoders are used to measure the position and speed of motor rotation. Customized encoders can meet specific resolution, interface type, housing material, or environmental requirements.

Brake Customization:

Brakes are used to stop or hold motors in specific positions. Customized brakes can provide specific braking force, release time, installation methods, and other functionalities according to customer needs.

Gearbox Customization:

Gearboxes are used to adjust the speed and torque of motors. Customizing different types of gearboxes can meet specific speed ratios, output shaft configurations, load capacities, or noise requirements.

Other Customization Needs:

Customers may also require other customization options such as special housing designs, protection ratings, customized labeling, or packaging requirements. These customization options can help customers obtain motor products that meet their specific application needs and ensure their performance and reliability in particular environments.
