Hexcore®-Marble & Synthetic Marble Honeycomb Panel
Hexcore®-Marble & Synthetic Marble Honeycomb Panel
Hexcore®-Marble & Synthetic Marble Honeycomb Panel
Hexcore®-Marble & Synthetic Marble Honeycomb Panel
Hexcore®-Marble & Synthetic Marble Honeycomb Panel
Hexcore®-Marble & Synthetic Marble Honeycomb Panel
Specifications
Place of Origin :
QINGDAO,CHINA
Brand Name :
HEXCORE
Certification :
SGS,ISO
Price :
Negotiatable
Description

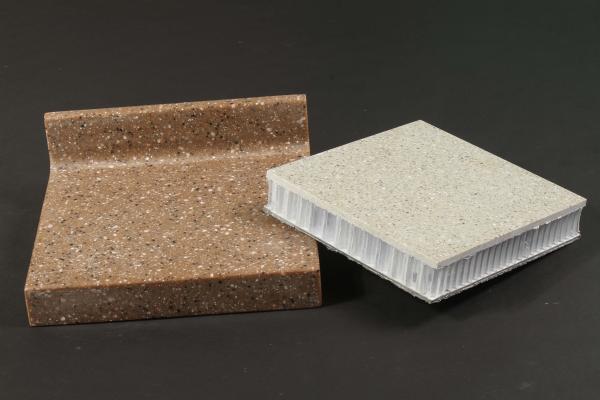

It consists of a natural and super-thin marble veneer (3mm-6mm) and an Aluminum-plastic panel on two sides of PVC honeycomb core tightly bonded together through gluing.

Product Advantages

  • Light weight - the standard marble or artificial marble honeycomb panel weighs 12kg per square meter, which is 1/6 of that of the pure stone panel. Lower burden to the building, increase building life span
  • High intensity and high capability of anti-strike; its intensity is 10 times of that of the 3cm-thick-granite.
  • Good quality of sound insulation and heat insulation.
  • Convenient for construction and ease of installation

Marble Veneer

Thickness: 3-6mm

Aluminum-plastic SKINS

Thickness: from 1.5 to 4 mm

(Other thicknesses and colors can be developed as requested)

Product Specifications for Hexcore®-Board PVC core

Material

PVC

Cell thickness

0.10~0.20mm

Specification

(Cell diameter edge to edge) S=8mm S=12mm

Size

Length within 2440mm, width within 620mm, thickness within 200mm

Density

55-75kg/m3

Compressive strength (Mpa)

0.7—1.0Mpa

Effective temperature

-40℃ -- +60℃

Standards Specifications

Item

Standard

Tolerance

Length (mm)

2400

±1.5

Width (mm)

1200

±1.5

Applications for marble honeycomb panels - Curtain wall, table top, interior and exterior decoration
