Specifications
Place of Origin :
Weifang
Brand Name :
QUALITY
Certification :
CE,ISO
MOQ :
100 square meter
Price :
Negotiation
Packaging Details :
In bulk
Delivery Time :
7 days
Payment Terms :
T/T OR L/C
Supply Ability :
10000SQM PER MONTH
Model Number :
HEYA-B
Application :
Office Etc
Door :
Steel Door
Window :
PVC Sliding Window
Usage :
Working
Roof :
Sandwich Tile
Color :
Optional
Wall :
EPS Sandwich Panel
Description

fast install high quality sandwich panel prefab container house with low price

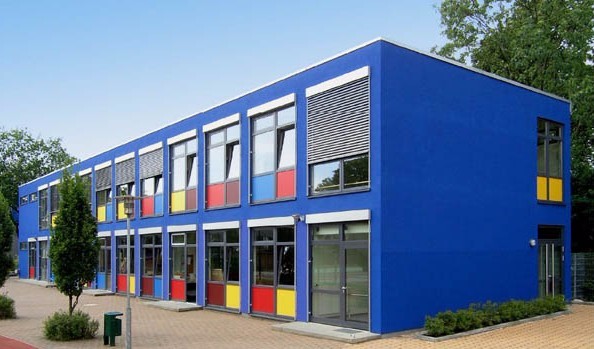

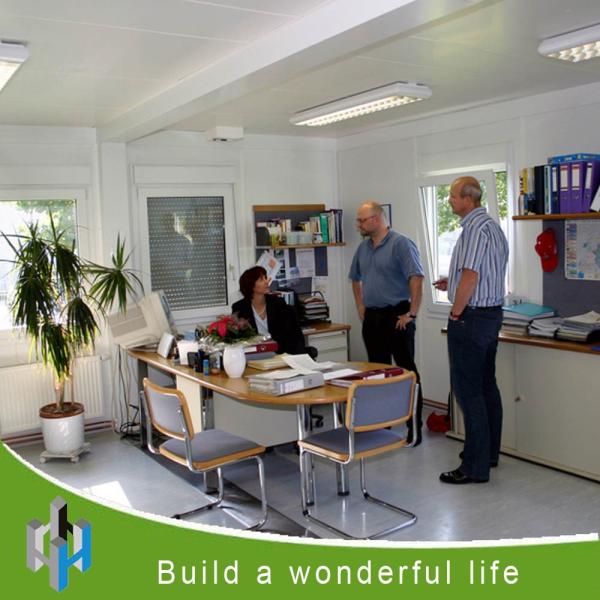

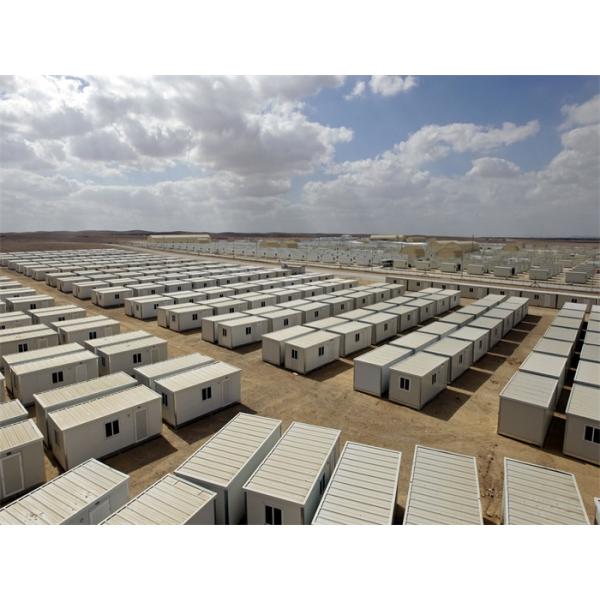

PRODUCT PHOTOS:

fast install high quality sandwich panel prefab container house with low price

fast install high quality sandwich panel prefab container house with low price

fast install high quality sandwich panel prefab container house with low price

PRODUCT DETAIL & TECHNICAL STANDARD:

Type External Internal Weight (kg)
Length Width Height (package) Height (assembled) Length Width Height
20’ 6055 2435 648/864 2591/2790 5860 2240 2500 from 1850

Floor:

Steel frame - made from cold rolled, welded steel profiles, 4 mm thick
- 4 corner casts, welded

- 2 fork lift pockets (except 30’) - distance 1200mm

(internal clearance of fork lift pockets: 240×80 mm)
- steel cross members, thickness=2mm
Insulation - 100 mm thick Rock Wool
Subfloor - 0.5mm thick, galvanized steel sheet
Floor - 18mm plywood board

- 1.8mm PVC floor

- flammability class B1 - hardly combustible

- smoke density class Q1 - low smoke emission

- wear resistance factor: T level

fast install high quality sandwich panel prefab container house with low price

Roof:

Steel frame - made from cold rolled, welded steel profiles, 3mm thick
- 4 corner casts, welded
- steel cross members, thickness=2mm
Roof cover

- 0.5mm thick, galvanized steel sheet

- 360 degree seaming at joint of roof panels
Insulation - 100 mm thick Rock Wool
Ceiling

- 10 mm chipboard (V 20), laminated on both sides, white

- the chipboard complies with the emission value E1
CEE connector - sunken in frame on short end side

fast install high quality sandwich panel prefab container house with low priceInsulation for steel container house:

Rock wool - density:120kg/m3

- flammability class A- non combustible

- smoke density class Q1 - low smoke emission
- certificated: CE & GL
EPS - density:10kg/m3

- flammability class B1- non combustible

- smoke density class Q1 - low smoke emission
- certificated: CE & GL

fast install high quality sandwich panel prefab container house with low price

PACKING & SHIPMENT:

Packaging mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container
Loading &shipment mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container
Unloading

40 feet ocean freight container:

A: take out the small packages;

B: use folk lift to take out the wall panel packages;

C: grapple the corner on bottom side of the container house and drage the package out, remain about 50cm in the shipping container

D: use folk lift to lift the container package in the middle and move it out of the shipping container;

E: put the package on ground sidewise, use wooden pad if it’s flatwise
