Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans
Specifications
Brand Name :
QUALITY
Model Number :
HEYA-B
Certification :
CE,ISO
Place of Origin :
Weifang
MOQ :
4 UNITS Container house
Price :
Negotiation
Payment Terms :
T/T OR L/C
Supply Ability :
100 Units container house
Delivery Time :
7 days
Packaging Details :
SOC or In bulk
Structure :
Galvanized Steel Frame
Size :
6055mmX2435mmX2896mm
Application :
camp,etc.
Door :
Steel Door
Usage :
Living
Roof :
Sandwich Tile
Type :
Prefab
Wall :
EPS Sandwich Panel
Color :
Customized
Layout :
Customized
Description

Wholesale factory price precast 2 storey 100m2 container house plans

1. 2 storey precast container house

2. 2 storey precast house

3. 100m2 precast house plans

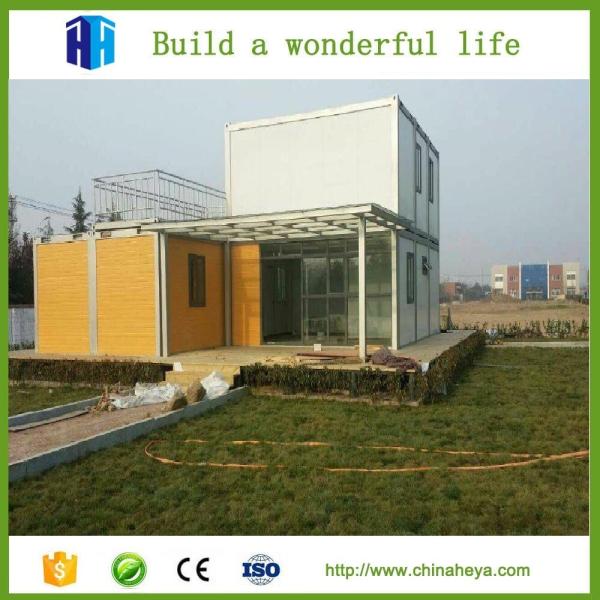

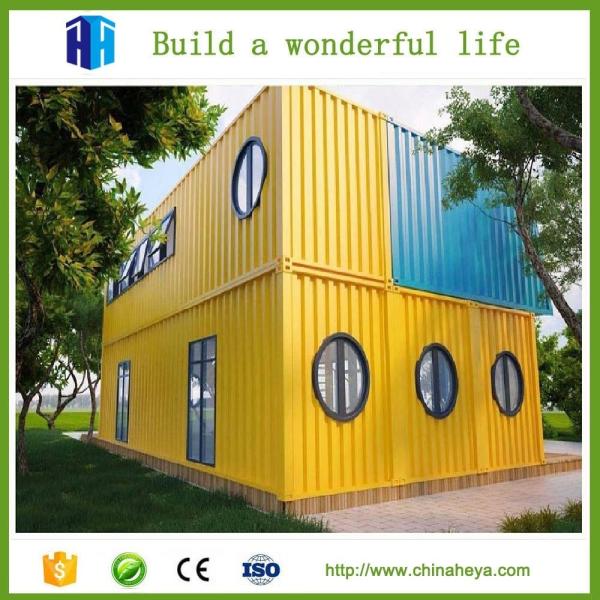

PRODUCT PHOTOS:

Wholesale factory price precast 2 storey 100m2 container house building plans

Wholesale factory price precast 2 storey 100m2 container house building plans

Wholesale factory price precast 2 storey 100m2 container house building plansWholesale factory price precast 2 storey 100m2 container house building plans

PRODUCT DETAIL & TECHNICAL STANDARD:

Type External Internal Weight (kg)
Length Width Height (package) Height (assembled) Length Width Height
20’ 6055 2435 648/864 2591/2790 5860 2240 2500 from 1850

Floor:

Steel frame - made from cold rolled, welded steel profiles, 4 mm thick
- 4 corner casts, welded

- 2 fork lift pockets (except 30’) - distance 1200mm

(internal clearance of fork lift pockets: 240×80 mm)
- steel cross members, thickness=2mm
Insulation - 100 mm thick Rock Wool
Subfloor - 0.5mm thick, galvanized steel sheet
Floor - 18mm plywood board

- 1.8mm PVC floor

- flammability class B1 - hardly combustible

- smoke density class Q1 - low smoke emission

- wear resistance factor: T level

Wholesale factory price precast 2 storey 100m2 container house building plans

Roof:

Steel frame - made from cold rolled, welded steel profiles, 3mm thick
- 4 corner casts, welded
- steel cross members, thickness=2mm
Roof cover

- 0.5mm thick, galvanized steel sheet

- 360 degree seaming at joint of roof panels
Insulation - 100 mm thick Rock Wool
Ceiling

- 10 mm chipboard (V 20), laminated on both sides, white

- the chipboard complies with the emission value E1
CEE connector - sunken in frame on short end side

Wholesale factory price precast 2 storey 100m2 container house building plans

Insulation for steel container house:

Rockwool - density:120kg/m3

- flammability class A- non combustible

- smoke density class Q1 - low smoke emission
- certificated: CE & GL
EPS - density:10kg/m3

- flammability class B1- non combustible

- smoke density class Q1 - low smoke emission
- certificated: CE & GL

Wholesale factory price precast 2 storey 100m2 container house building plans

PACKING & SHIPMENT:

Packaging mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container
Loading &shipment mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container
Unloading

40 feet ocean freight container:

A: take out the small packages;

B: use folk lift to take out the wall panel packages;

C: grapple the corner on bottom side of the container house and drage the package out, remain about 50cm in the shipping container

D: use folk lift to lift the container package in the middle and move it out of the shipping container;

E: put the package on ground sidewise, use wooden pad if it’s flatwise

Wholesale factory price precast 2 storey 100m2 container house building plans
Wholesale factory price precast 2 storey 100m2 container house building plans

YOU MAY LIKE:

Wholesale factory price precast 2 storey 100m2 container house building plans

ABOUT US:

Shandong Heya Company is the best Chinese prefabricated housing solution supplier.

Our products include prefabricated house,container house, mobile homes, villas, integrated steel structure.

We have 6 years experience in the industry, owning professional manufacture and procurement team, and maintaining long-term cooperative relationship with many well-known manufacturers. Wholesale factory price precast 2 storey 100m2 container house building plans

OUR CLIENTS:

Wholesale factory price precast 2 storey 100m2 container house building plans

Wholesale factory price precast 2 storey 100m2 container house building plans
