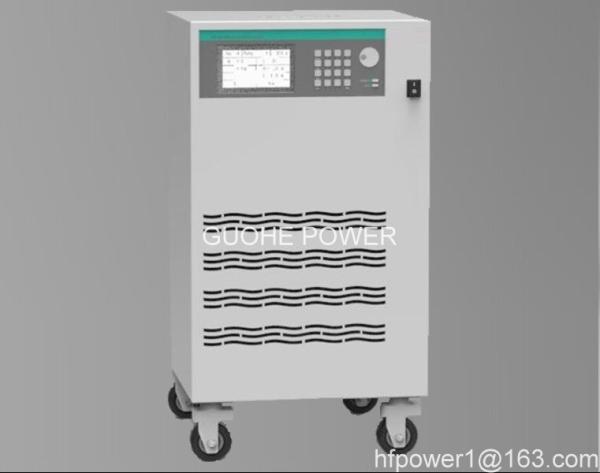

5KVA-80KVA programmable AC Power Source output 110V/220V/380V/415V/440V 50Hz/60hz/400Hz
5KVA-80KVA programmable AC Power Source output 110V/220V/380V/415V/440V 50Hz/60hz/400Hz
Specifications
Place of Origin :
CHINA
Brand Name :
GUOHE
MOQ :
1 SET
Packaging Details :
WOODEN BOX
Delivery Time :
4-6 WEEKS
Payment Terms :
T/T
Price :
depending on quantity and specification
Model Number :
HFCS
Supply Ability :
1000 SETS
Description

5KVA-80KVA programmable AC Power Source output 110V/220V/380V/415V/440V 50Hz/60hz/400Hz

HFCS series Programmable AC Power Sources have the ability to simulate the AC voltage and frequency used in all countries. They are excellent instruments for R&D, design, production testing/evaluation, and QA verification. In addition, the frequency range covers 500 Hz, making these products ideal for commercial and defense avionics applications.

The HFCS series delivers maximum rated power for any adjustable output voltage up to 300Vac (LN) /520Vac (L-L )for 3 phase units, and at any adjustable frequency between 40Hz to 500 Hz. It integrates IGBT made by Mitsubishi, Siemens, and Infineon, and combines microprocessor and ARM & DSP control design together for quick response and higher reliability and parallel operation.

Main Features:

10 memory locations for easy test setup and recall

Double protection with hardware and software

Free instrument control software available

Simulate transient conditions

Programmable starting, voltage and current limit

LCD to monitor voltage, current, frequency, power and power factor

Built- in RS232, RS485, communication port, suitable for remote monitoring

Models Selection

HFCS series power supply model designation is shown below:

HFCS-33 0100

HFCS-3(input phase)3(output phase) 0100 (capacity 100KVA)

HFCS series power supply are available with the following capacities(parallel operation is available):

Single phase output: 500VA ~ 100KVA

Triple phase output: 500VA ~ 450KVA
