100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile
100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile
100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile
100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile
100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile
100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile
Specifications
Brand Name :
MEILI
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
80 Sets per Month
Delivery Time :
In 60days
Packaging Details :
Iron Pallet
Product name :
100T Four Pillar Deep Drawing Press Machine
Type :
Four Pillar
Keyword :
Deep Drawing Press Machine
Nominal force :
1000KN
Ejecting force :
250KN
Application :
automobile, kitchenware and household appliance industries
Description

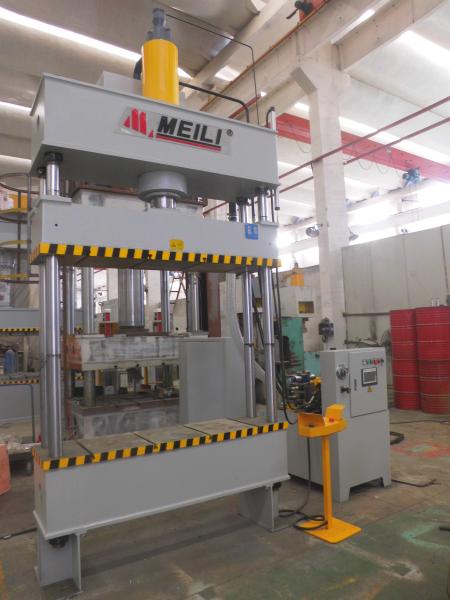

100T Four Pillar Deep Drawing Press Machine. MEILI offers 4 Post deep drawing press machine which is also called 4 Pillar press machine or 4 column press machine.

Product Advantage
1. The higher precision of the movable working table and high rigidity of the press body make this press typically suitable for forming of workpiece with irregular shape and required for high precision.

2. Faster working speeds allow higher production efficiency.
3. The main hydraulic cylinder is made of alloy cast steel and its inner surface is a finely grinded Machine.

4. Four columns are made of alloy steel with high tensile resistance and finely grinded and electroplated with hard chrome.
5. The lower cylinder design makes a more compact overall dimension of the machine.

Optional:
1. Optoelectronic protective device
2. Moving table
3. Floating guide-way and rolling bracket for die exchange
4. Blanking buffer device
5. Quick die clamping mechanism
6. Industrial touching screen monitor
7. Stroke,pressure,speed digital control device
8. Water cooler device Displacement sensor

specification Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130


100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile

100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile

100 Ton Four Pillar Press Hydraulic Deep Draw Machine 1000KN For Automobile

FAQ:

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.

Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.

Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.

Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
