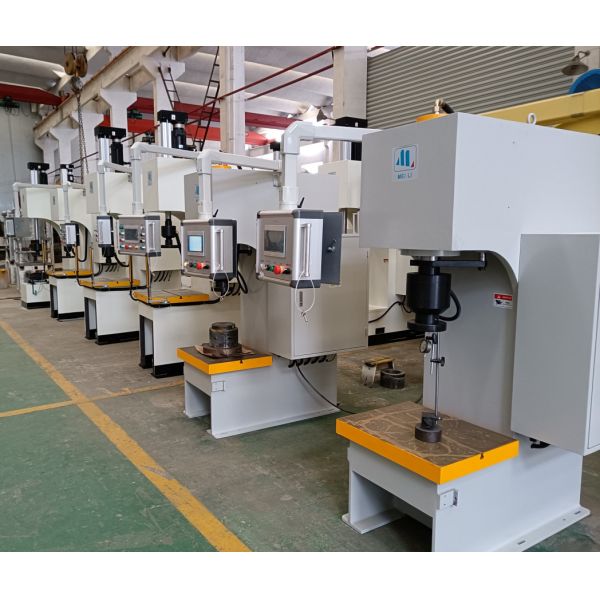

20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
Specifications
Brand Name :
MEILI
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
80 Sets per Month
Delivery Time :
In 60days
Packaging Details :
Iron Pallet
Product name :
20T CE Compliance Electric servo press
Usage :
assembly press
Max daylight :
500mm
Material :
350mm
Voltage :
0-80mm/s
Throat Depth :
280mm
Cnc or not :
CNC
Warranty :
2 years
Description

20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height

20T CE Compliance Electric servo press

  • Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots;
  • Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise;
  • Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany;
  • Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain;
  • Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic;

Description Unit 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Nominal Force T 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Table size L-R mm 300 300 400 400 400 500 500 500 600
F-B mm 250 250 320 320 320 440 440 440 500
Max daylight mm 300 300 300 350 400 450 500 500 500
Stroke of slider mm 120 120 150 200 250 250 300 350 350
Down speed mm/s 0-80
Working speed mm/s 0-15
Return speed mm/s 0-80
Throat Depth mm 120 120 160 160 180 250 250 250 280
Operation Height mm 750 750 750 750 750 750 750 750 750
Powder of motor KW 1 2 2 3 4 5 7.8 11 20


20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height

20T CE Compliance Electric Servo Press 220V/380V 750mm Operation Height
