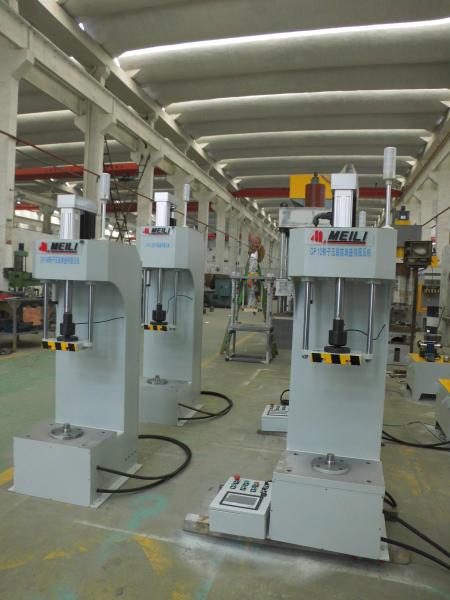

Electric Hydraulic Assembly Press PLC 0.01mm Accuracy Motor Industry
Electric Hydraulic Assembly Press PLC 0.01mm Accuracy Motor Industry
Electric Hydraulic Assembly Press PLC 0.01mm Accuracy Motor Industry
Electric Hydraulic Assembly Press PLC 0.01mm Accuracy Motor Industry
Specifications
Brand Name :
MEILI
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
80 Sets per Month
Delivery Time :
In 60days
Packaging Details :
Iron Pallet
Product name :
Electric hydraulic press for assembly
Unit :
5T
Max daylight :
450mm
Stroke of slider :
250mm
System :
Servo
Cnc or not :
CNC
Voltage :
220V/380V(According to requirement)
Warranty :
2 years
Description

Electric hydraulic press for assembly

Features:

1. High efficiency, multiple protections inside, and extremely low failure rate.

2.12 hours of continuous work without cooling oil temperature.

3. Pipes and joints adopt SEA international standards to prevent pipeline oil leakage.

4. Adopt button centralized control, (fixed distance / constant pressure) two control methods, (adjustment / automatic) two operation methods

5. standard hydraulic system and electrical appliance safety IP54 level.

Description Unit 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Nominal Force T 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Table size L-R mm 300 300 400 400 400 500 500 500 600
F-B mm 250 250 320 320 320 440 440 440 500
Max daylight mm 300 300 300 350 400 450 500 500 500
Stroke of slider mm 120 120 150 200 250 250 300 350 350
Down speed mm/s 0-80
Working speed mm/s 0-15
Return speed mm/s 0-80
Throat Depth mm 120 120 160 160 180 250 250 250 280
Operation Height mm 750 750 750 750 750 750 750 750 750
Powder of motor KW 1 2 2 3 4 5 7.8 11 20


Electric Hydraulic Assembly Press PLC 0.01mm Accuracy Motor Industry

Electric Hydraulic Assembly Press PLC 0.01mm Accuracy Motor Industry
