250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC
250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC
250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC
250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC
250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC
250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC
Specifications
Brand Name :
MEILI
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
80 Sets per Month
Delivery Time :
In 60days
Packaging Details :
Iron Pallet
Product name :
250T C Frame Hydraulic Press Machine for metal forming
System :
25Mpa
Nominal Force :
2500KN
Core components :
Moto Pump
Voltage :
380V/220V Optional
Description

250T C Frame Hydraulic Press Machine for metal forming.+

Features:

• This structure of this C Frame press looks like letter "C" and all parts and installed in the machine body which facilitate easy and safe operation.

• C Frame high strength structure design with three sides open for easy material loading and product unloading as well as easy connecting with other corollary equipment.

• This C Frame hydraulic punching press can be tailor made to meet different application requirements.

High speed C-Frame presses that can be used for a wide number of processes. These processes include assembling, riveting, molding, bending, straightening, pressing and more.

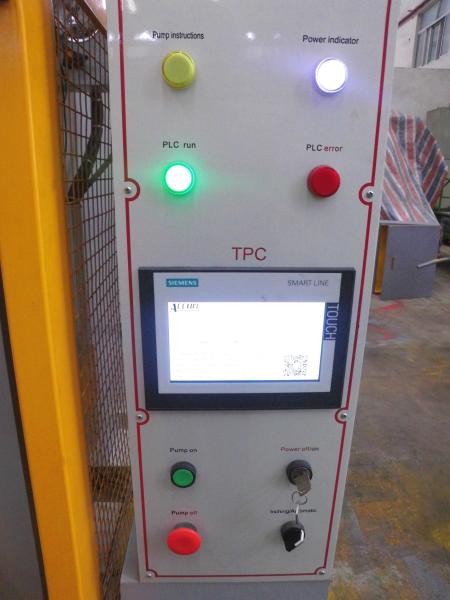

With an outstanding price to performance ratio, these presses are very versatile, rigid and have long running times. We can also offer optional touch screen terminals for data storage, easy machine calibration and program configuration.

Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5

Overall size

 L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000

250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC

250Ton C Frame Hydraulic Press Machine Hydraulic Press Metal Forming CE ISO TPC
