Specifications
Brand Name :
Lang Tai
Model Number :
HB(BCD)
Certification :
CE /ISO/GOST
Place of Origin :
Changyuan, China（mainland）
MOQ :
1set
Price :
consult
Payment Terms :
Western Union, L/C, D/A
Supply Ability :
20 sets per day
Delivery Time :
15
Packaging Details :
Packaging Details: By container or Bulk Ship based on principle of keeping package safety and reducing cost.
model :
BCD
Lifting capacity :
2t
rise :
6-9-12-18
colour :
Green or customized
purpose :
Chemical workshop or flammable and explosive environment
Description

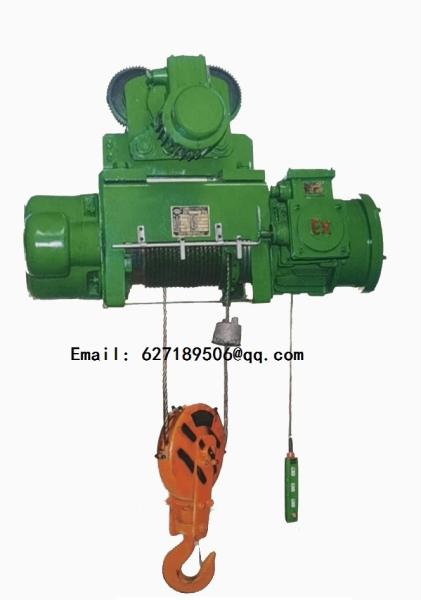

Introduction of explosion proof electric hoist

The explosion-proof electric hoist is a kind of light and small lifting equipment. The explosion-proof electric hoist has light weight, small volume and large lifting capacity. When the workshop is filled with explosive mixture, it is a favorable tool to improve working conditions and labor productivity on the premise of ensuring safety. It is also a necessary mechanical equipment for production.

The explosion-proof form of the explosion-proof lifting equipment designed and manufactured according to the explosion-proof standard is "flameproof". The exposed explosion-proof parts of the hoist are made of special non sparking materials, so the explosion-proof performance is safe and reliable.

The product has passed the explosion-proof performance test of the explosion-proof electrical product quality supervision and inspection center of the Ministry of mechanical industry, and issued the explosion-proof certificate.

The explosion-proof electric hoist is suitable for class I explosion-proof coal mine non mining working face places and class II explosion-proof places with class IIa, IIB, IIC, temperature group T1-T4 combustible gas or explosive gas mixture composed of steam and air. The working environment temperature is - 25 ℃ ~ 40 ℃, suitable for indoor use; When used outdoors, protective devices should be added.

Technical parameters

Explosion proof electric hoist

Model hbj2 hbj4 hbj5 hbj6

Pulley ratio 1 / 2 1 / 4 1 / 2 1 / 4 1 / 2 1 / 4 1 / 4 1 / 4

Lifting capacity (T) 1 23.26.3 5 10 20

Lifting height (m) 6.3, 8, 10, 12.5, 16, 20

Lifting speed (M / min) 10 / 1.65/0.88/1.34/0.6512/26/13; 3/0.5

Running speed (M / min) 20

Power supply (V; Hz) 380/220; fifty

Wire rope 8nat6 × 37+NF1670ZS 12NAT6 × 37N167 15NAT6 × 37+NF1670ZS 20NAT6 × 29Fi+FC1870

Track I-beam model 16-28b 20a-45c 28a-63c 28a-63c 36a-63c

Explosion proof electric chain hoist

Explosion proof electric chain hoist

Motor lifting power (kw) 2 / 0.33 5 / 0.83 12 / 2 12 / 2

Speed (R / min) 2800 / 460 2800 / 460 2800 / 460 2800 / 460 2800 / 460

Operating power (kw) 0.20.40.40.80.82 × 0.8 4 × zero point eight

Speed (R / min) 1380 1380 1380 1380

Classification of explosion proof electric hoist

Explosion proof electric hoist is divided into two types: explosion-proof chain electric hoist and explosion-proof wire rope electric hoist.

Specifications, main technical parameters and dimensions of explosion proof electric hoist
model BCD B MD
Lifting capacity t 0.5 1 2 3 5 10 16
Lifting height m 6/9/12 6/9/12/18/24 6/9/12/18/24 6/9/12/18/24 6/9/12/18/24 6/9/12/18/24 6/9/12/18/24
Lifting speed (fast / slow) M / min 8(0.8) 8(0.8) 8(0.8) 8(0.8) 8(0.8) 8(0.8) 4(0.4)
running speed M / min 10 10 10 10 10 10 10
a wire rope Rope diameter mm 4.8 7.4 11 13 15.5 15.5 17.5
Filament diameter mm 0.22 0.34 0.5 0.6 0.7 0.7 0.7
structural style mm D-6*37+1 D-6*37+1 D-6*37+1 D-6*37+1 D-6*37+1 D-6*37+1 D-6*37+1
I-beam track model (gb706-65) 16~28b 16~28b 20a~32c 20a~32c 25a~63c 25a~63c 25a~63c
Minimum radius of circular track (m) 1.5 1.5/2/3/4 2/2.5/3/4 2/2.5/3/4 2.5/3/4/5 2.5/3.5/6/7.5 2.5/3.5/6/7.5/9
Lifting motor model BZD21-4 BZD21-4 BZD31-4 BZD32-4 BZD41-4 BZD51-4 BZD51-4
capacity kw 0.8 1.5 3 4.5 7.5 13 13-18.5
speed RPM 1380 1380 1380 1380 1380 1380 1380
Power Supply v 3-380 3-380 3-380 3-380 3-380 3-380 3-380
Run the motor model BZDY11-4 BZDY11-4 BZDY12-4 BZDY12-4 BZDY21-4 BZDY21-4 BZDY21-4
capacity kw 0.2 0.2 0.4 0.4 0.8 0.8*2 0.8*2
speed RPM 1380 1380 1380 1380 1380 1380 1380
Power Supply v 3-380/660 3-380/660 3-380/660 3-380/660 3-380/660 3-380/660 3-380/660
