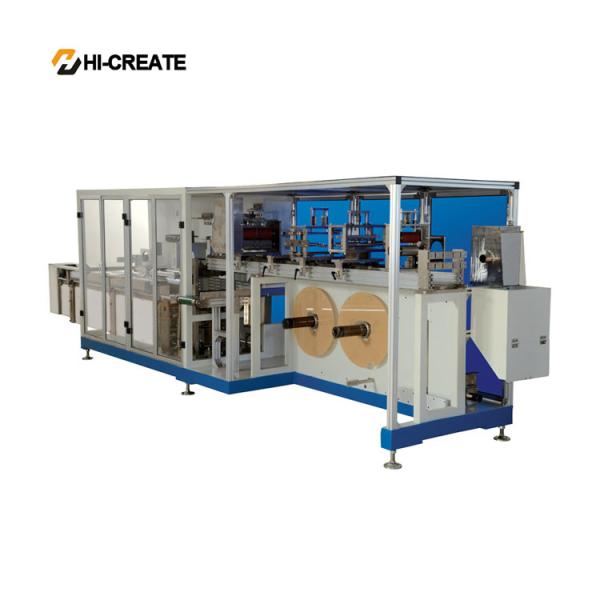

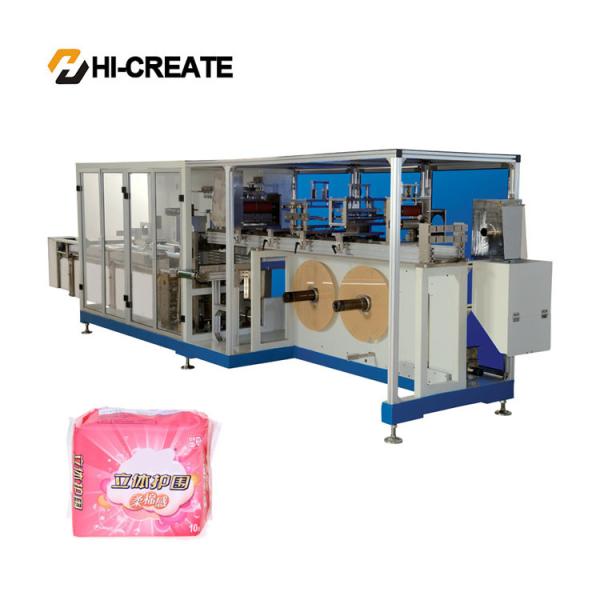

Sofy Pads HC-SS 98% Sanitary Napkin Machine

Specifications

Place of Origin :

Fujian, China

Brand Name :

HI-CREATE

Certification :

Supply Ability :

1 set/month

Packaging Details :

Wooden case packaging for Sanitary sofy pads small pack machine

MOQ :

>=1 Sets

Price :

$100,000.00

Payment Terms :

L/C, T/T

Delivery Time :

60 days

Type :

Other

Applicable Industries :

Manufacturing Plant

Condition :

New

Application :

sanitary pads

Packaging Type :

Cartons, Bags

Packaging Material :

plastic, Paper

Automatic Grade :

Automatic

Driven Type :

Electric

Voltage :

220V 50HZ

Power :

18KVA

Weight :

2500 kg

Dimension(L*W*H) :

6*1.3*2.35 m

Key Selling Points :

Competitive Price

Number of pieces per row :

6-30pcs/row

Working speed :

60bags/min

Finished bags dimensions :

Min. 60*50*90mm, Max. 100*100*240 mm(W*H*L)

Tube film bag(PE) thickness :

50-70μm

Air Supply :

0.65-0.85Mpa

Control system :

PLC+Touch screen

Standard process direction :

Left-hand process,Right-hand process direction available upon request.

Finished product rate :

>=98%

After-sales Service Provided :

Engineers available to service machinery overseas

Port :

Xiamen

Description

Sofy Pads HC-SS 98% Sanitary Napkin Machine

Product Application:

Sanitary sofy pads small pack machine adopts automatic feeding, box opening, box entering, batch number printing (optional), glue spraying, box sealing and other packaging forms, with compact and reasonable structure and simple operation and adjustment;The equipment adopts servo/stepper motor and touch screen, PLC programmable control system, the man-machine interface display operation is more clear and simple, high degree of automation, more user-friendly;The machine adopts automatic feeding and conveying mechanism, which facilitates the linkage production with automatic production line and can greatly reduce labor cost.The machine adopts photoelectric automatic detection and tracking system, which can save packaging materials.

Main Technical Parameters:
Model	HC-SS
Working speed	60bags/min
Finished product rate	≥98%
Number of pieces per row	6-30pcs/row
Finished bags dimensions	Min. 605090mm, Max. 100100240 mm(WHL)
Tube film bag(PE) thickness	50-70μm
General dimensions(LWH)	61.32.35 m
Total weight	2.5Ton
Electrical Power consumption	18KVA
Air Supply	0.65-0.85Mpa
Standard process direction	Left-hand process,Right-hand process direction available upon request.

Main Features:

1. Fully servo driven,Servo motor management by electronic CAM
2. Force restrict protection, stable running
3. Modular structure design
4. Bag production Online, color sensor positioning
5. Mould replacement specification,Easy operation
6. Can be used for insertion and Laminated

Packing & Shipping:
Sofy Pads HC-SS 98% Sanitary Napkin Machine

Our Company & Factory:

HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
