Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket
Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-100W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$144.16/PC, EXW Price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 PCS per Month
Delivery Time :
3 - 5 working days
Packaging Details :
54cm*46cm*19cm / 2pcs / 13.5kg / carton
Watts: :
100W
Lumens: :
14000lm
Voltage: :
90-305VAC
Efficiency: :
140lm/W
LED Chip: :
Nichia 3030
CCT: :
3000K - 5700K or as customized
CRI: :
>70 or >80
Beam Angle: :
ANB,AWB,SNB,SWB
Operating Temperature: :
-40℃ to +45℃
IP: :
66
IK: :
10
Installation Way: :
Adjustable bracket
Driver: :
Meanwell
Warranty: :
5 yrs
Description

IK10 IP65 140lm/W 100W LED Area Flood Lights For Outdoor Area Lighting , 14000lm

Features

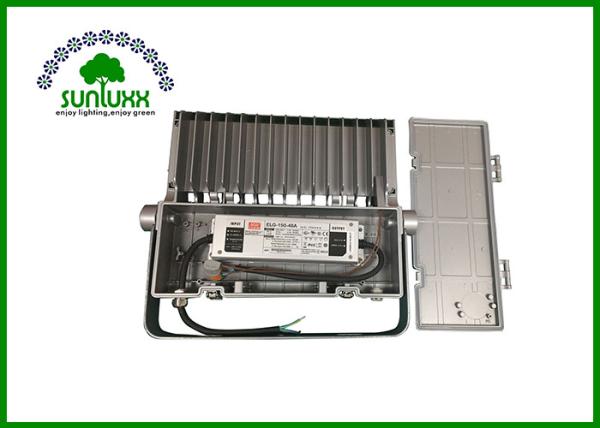

• NICHIA 3030 LED chips, Meanwell Driver.

• Easy installation and maintenace, dust prevention, longer lifetime with high performance.

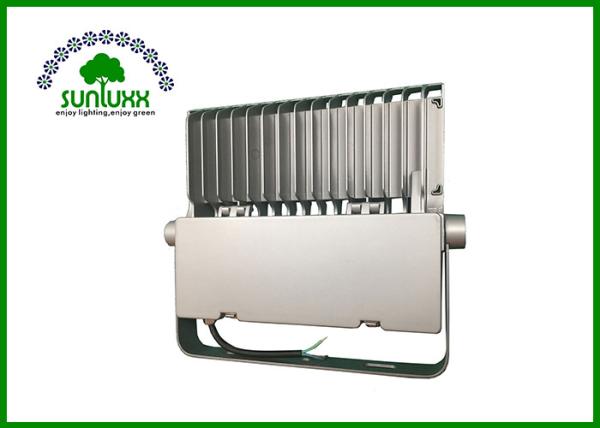

• Aluminum die-casting lamp body, strong and no shape change. Advanced heat sink provides superior terminal management.

• IP66 protection class, IK10, strong enough for strong wind resistance.

• With adjustable bracket, ANB, AWB, SNB, SWB beam angles for options, satisfy different lighting situation requirements.

• 50,000 hours long lifespan, and 5 years warranty.

• High quality and safe materials choosing, 100% green lighting.

Technich Data

Power 100W
Input Voltage 90 - 305VAC
Input Current 0.45A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 1.9A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K Typical Flux 13000lm±10%
Efficiency 130lm/W±10%
Ra>70,5000K Typical Flux 14000lm±10%
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 330*373*50
Net Weight(kg) 4.76
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount

Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable BracketOutdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket

Product Size

Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket

Beam Angle

ANB AWB SNB SWB

Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket

Installation Manual

Outdoor LED Area Flood Lights NICHIA 3030 LED Chips Type With Adjustable Bracket

Applications

  • Outdoor lighting
  • Architectrural lighting
  • Storage spaces
  • Golf courts
  • Landscape lighting
  • Gym lighting
  • Warehouse lighting
  • Square, park, wall of buildings, church, bridge, public area.
