Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-200W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$194.58/PC, EXW Price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 PCS per Month
Delivery Time :
3 - 5 working days
Packaging Details :
54cm*46cm*19cm / 2pcs / 13.5kg / carton
Watts: :
200W
Voltage: :
90-305VAC
Power Factor: :
>0.95
LED Chip: :
Nichia 3030
CCT: :
3000K,4000K,5000K,5700K
Beam Angle: :
ANB,AWB,SNB,SWB
Operating Temperature: :
-40℃ to +45℃
IP: :
66
IK: :
10
Driver: :
Meanwell
Description

High Performance Badminton Lighting 200W LED Area Flood Light , IK 10 , IP66 , 28000lm

Features

• Super bright NICHIA 3030 LED chips, high intensity and reliable, water proof high strength aluminum alloy housing, Ferrari ideal design.

• Energy saving, low power consumption, low temperature, long lifespan.

• Water proof IP66 grade, suitable for outdoor LED lighting application.

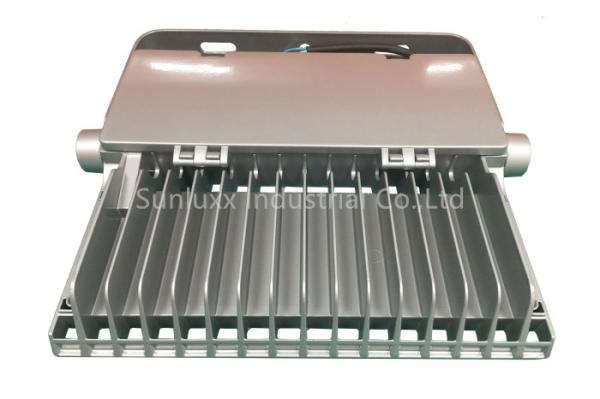

• Unique design aluminum die-casting fin heatsink, release the heat inside.

• MEANWELL driver, water proof, ensure the light working constant and stable

• Easy to install, operation and maintenance.

• no UV or IR radiation, no flickering / instant start up, no mercury.

• Strong Wind resistance, long life of more than 50,000h.

Technich Data

Power 200W
Input Voltage 90 - 305VAC
Input Current 0.91A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 3.9A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K Typical Flux 26000lm±10%
Efficiency 130lm/W±10%
Ra>70,5000K Typical Flux 28000lm±10%
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 441*373*50
Net Weight(kg) 6.37
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount

200W LED Flood Light Fixture , 28000LM Badminton Court Lighting LED Floodlight

200W LED Flood Light Fixture , 28000LM Badminton Court Lighting LED Floodlight200W LED Flood Light Fixture , 28000LM Badminton Court Lighting LED Floodlight

Product Size

200W LED Flood Light Fixture , 28000LM Badminton Court Lighting LED Floodlight

Beam Angle

ANB AWB SNB SWB

200W LED Flood Light Fixture , 28000LM Badminton Court Lighting LED Floodlight

Installation Manual

200W LED Flood Light Fixture , 28000LM Badminton Court Lighting LED Floodlight

Applications

Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Sport Court Lighting.
