Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-240W/200W/150W/100W/75W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$129.31 - 217 / PC, EXW Price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 PCS per Month
Delivery Time :
3 - 5 working days
Packaging Details :
54cm*46cm*19cm / 2pcs / 13.5kg / carton
Watts: :
240W/200W/150W/100W/75W
Luminous Efficiency: :
140lm/W
Voltage: :
90-305VAC
Power Factor: :
>0.95
LED Chip: :
Nichia 3030
CRI: :
>70 or >80
Beam Angle: :
ANB,AWB,SNB,SWB
Operating Temperature: :
-40℃ to +45℃
IP: :
66
IK: :
10
Driver: :
Meanwell
Warranty: :
5 yrs
Description

Anti Typhoon 240W 200W 150W 100W 75W LED Area Flood Lights For Outdoor Area Lighting

Features

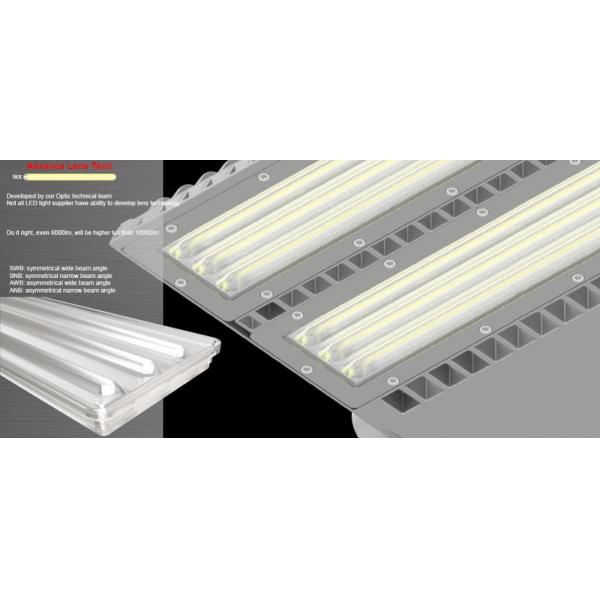

• Advanced lens technology with varoius angle, asymmetrical and symmetrical lens for different applications.

• Optic: SWB / symmetric wide beam angle, SNB / symmetric narrow beam angle, AWB / asymmetric wide beam angle, ANB / asymmetric narrow beam angle.

• Patented heat sink design, best heat dissipation technology.

• Using NICHIA 3030 SMD LEDs, better performance than LEDs.

• High lumen efficiency, 140lm/W, many other flood lights can only be 100-120lm/W

• IP66, IK10, water proof and durable, 5 years warranty.

• Anti typhoon: no deformation, loosening under wind tunnel test at the highest wind speed.

• Safe, energy-saving, no UV or IR radiation, no flickering / instant start up, no mercury.

• Long life of more than 50,000h, 5 years warranty.

Technich Data

Power 240W/200W/150W/100W/75W
Input Voltage 90 - 305VAC
Input Current 1.1A@220VAC /0.91A@220VAC /0.68A@220VAC / 0.45A@220VAC /0.34A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 4.65A / 3.9A / 2.9A / 1.9A / 1.4A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K
Efficiency 130lm/W±10%
Ra>70,5000K
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 441*373*50 / 330*373*50
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount

Outdoor Area Lighting LED Light Fixtures , Anti Typhoon Outdoor LED Floodlights

Outdoor Area Lighting LED Light Fixtures , Anti Typhoon Outdoor LED Floodlights

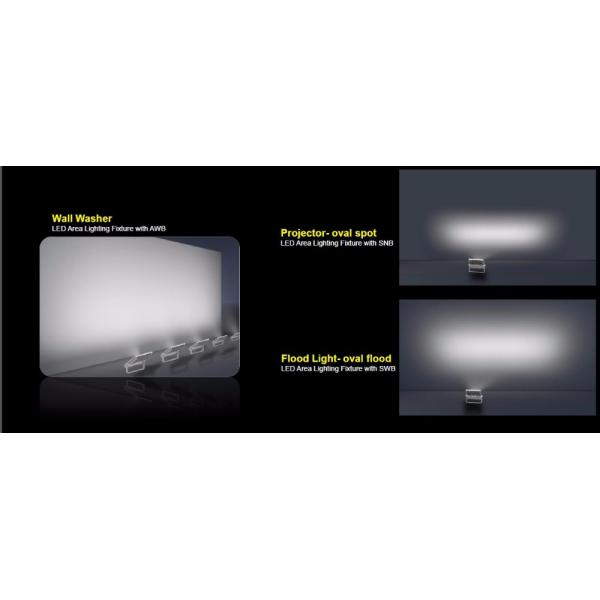

Beam Angle

ANB AWB SNB SWB

Outdoor Area Lighting LED Light Fixtures , Anti Typhoon Outdoor LED Floodlights

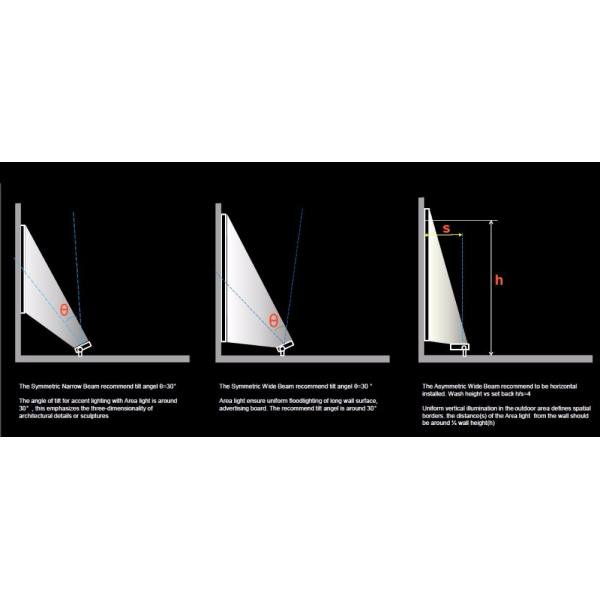

Installation Manual

Outdoor Area Lighting LED Light Fixtures , Anti Typhoon Outdoor LED Floodlights

Applications

Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Sport Court Lighting.
