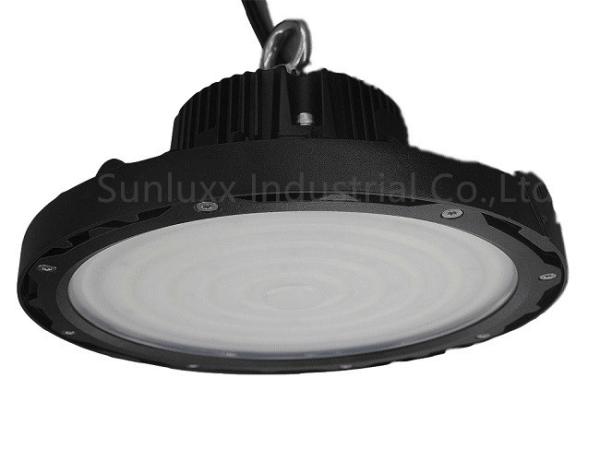

Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures
Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures
Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures
Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures
Specifications
Brand Name :
SUNLUXX
Model Number :
HBL-80Watt
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$97.55/PCS unit EXW prices
Payment Terms :
T/T, Western Union
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
34cm*34cm*24cm/1pcs
Beam angle :
60 ° , 90 ° , 120 °
Lumen :
12000
Color Temperature :
3000K,4000K,5000K,5700K
LED Brand :
Nichia 3030 and Lumileds 3030
Life Circle :
45℃ 50000Hours
Input Current :
0.36A@220VAC
Operation Temp :
-40℃ ~ +45℃
Product Size (mm) :
261*261*172
Description

Spraying process Smooth Surface Aluminum LED High Bay For Industrial Lighting

Aluminum LED High Bay provide superior lighting and energy savings over commercial HID fixtures.

Sunluxx Industrial LED High Bay Fixtures offer up to 7 YEARS guarantee,low maintenance lighting,even in the harshest environments.

Features

1. Compact and Fashion design.

2. Luminous efficacy up to 160 lm/W, high power factor (>0.95)

3. Uniform light distribution

4. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.

5. Easily replace standard high bay fixtures.

6. Up to 7 years warranty

7. Up to 20'(6m) mounting height

Produce Code

HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W

Power 60Watt 80W 100W 120W 150W 200W 240W
Input Voltage 90-305VAC
Input Current

60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC

120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC

240W:1.10A@220VAC
PF >0.90@220VAC
DC output voltage 60W:54V 80W100W120W150W: 48V
DC output current 60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A
Dimming (Optinal) 3 in 1 dimming (PWM, 0-10V, Resistor),Dali
CCT 4000K,5000K,5700K,3000K

Ra >70

5000K

 Typical Flux

60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%,

120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5%

240W:36000Lm±5%
LED Brand Nichia 3030 and Lumileds 3030
Beam Angle 60°,90°,120°
Operation Temp -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃
Life Circle 45℃ 50000Hours
IP Class IP66
IK Class IK08
Certificate CE,ROHS
Body Color Black (default with RAL9005),Gray ( optional for RAL9007)

Product

Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures

Temperature Test

Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures

Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures

Link of more details information about Sunluxx UFO LED High Bays

https://youtu.be/oCeWStodFE0
