150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens
150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens
150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens
150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens
150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens
150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens
Specifications
Brand Name :
SUNLUXX
Model Number :
CHBL-100
Certification :
ETL, CE,SAA,ROHS,NSF
Place of Origin :
China
MOQ :
1
Price :
US$98.66/PCS unit for EXW item
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
48cm*48cm*22cm/1pcs
Wattage :
100W
Luminous Efficiency :
150Lm/W
Beam Angle :
60°90°120°
Input Voltage :
100-277VAC,50/60Hz
LED Brand :
CREE SMD 3030 / LUMILEDS 3030
Driver :
MOSO Brand
Description

Food Processing Lighting 150Lm/W 100W LED High Bay Down Light , Hook Mount , 90°Beam Angle Lens

LED High Bay Down Light LED High Bay fixture has an ambient temperature rating of -40°C to -45°C, and comes in a 5000K color temperature. Its ratings include: ETL, DLC, NSF, ROHS.

Features of LED High Bay Down Light

1. Compact and Fashion design

2. Luminous efficacy 150 lm/W,high power factor,MOSO brand Driver
3. Uniform light distribution

4. The first patented proprietary optics and higher transmittance 95% water wave lens

5. Surface anti-aging electrostatic spray-paint processing, ensure longer lifespan

6. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.

Item CHBL-100 CHBL-120 CHBL-150
Power 100W 120W 150W
Input Voltage 90-305VAC 90-305VAC 90-305VAC
Input Current 0.47A@220VAC 0.57A@220VAC 0.68A@220VAC
PF >0.90@220VAC >0.90@220VAC >0.90@220VAC

Dimming Option

MOSO

 2 in 1 dimming (PWM, 0-10V) 2 in 1 dimming (PWM, 0-10V) 2 in 1 dimming (PWM, 0-10V)

Dimming Option

Meanwell

 3 in 1 dimming (PWM, 1-10V, Resistor) / Dali 3 in 1 dimming (PWM, 1-10V, Resistor) / Dali 3 in 1 dimming (PWM, 1-10V, Resistor) / Dali

Ra>80

Luminous Flux

 14000Lm 16800Lm 21000Lm

Ra>70

Luminous Flux

 16000Lm 19200Lm 24000Lm
LED Brand Cree SMD 3030 / LUMILEDS 3030 Cree SMD 3030 / LUMILEDS 3030 Cree SMD 3030 / LUMILEDS 3030
Beam Angle 60°90°120° 60°90°120° 60°90°120°
Operation Temp -40℃ ~ +45℃ -40℃ ~ +45℃ -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃ -40℃ ~ +85℃ -40℃ ~ +85℃
Lifespan 25℃ 50000Hours 25℃ 50000Hours 25℃ 50000Hours
IP rating IP69K IP69K IP69K
IK rating IK10 IK10 IK10
Certificates ETL, CE,SAA,ROHS,NSF ETL, CE,SAA,ROHS,NSF ETL,CE,SAA,ROHS,NSF
Lamp Body Color Orange( RAL2004) Orange( RAL2004) Orange( RAL2004)
Product Size(mm) 400*400*197 400*400*197 400*400*197
Net Weight(kg) 5.6kg 5.6kg 5.6kg
Packing Size(mm) 480*480*220 480*480*220 480*480*220
Gross Weight(kg) 6.8kg 6.8kg 6.8kg
Installation Way Hook Mount/Pendant Mount Hook Mount/Pendant Mount Hook Mount/Pendant Mount

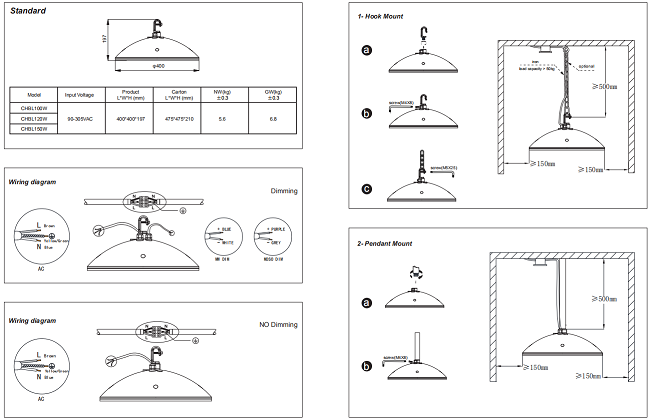

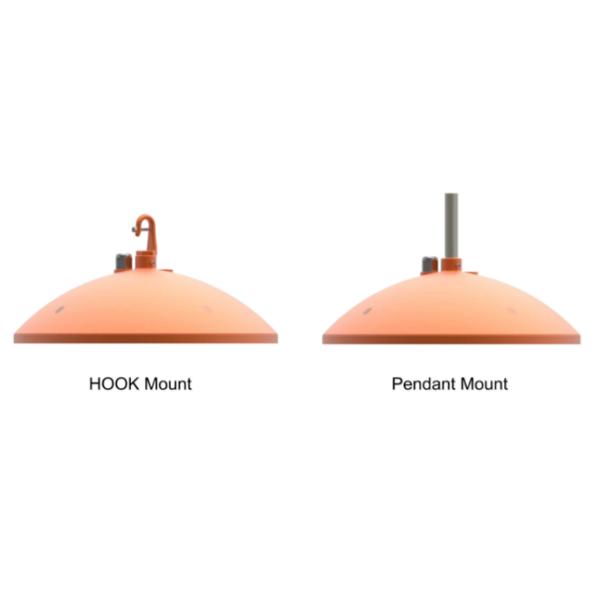

Installation Way:Hook Mount and Pendant Mount

150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens

150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens

150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens

Applications

150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens
