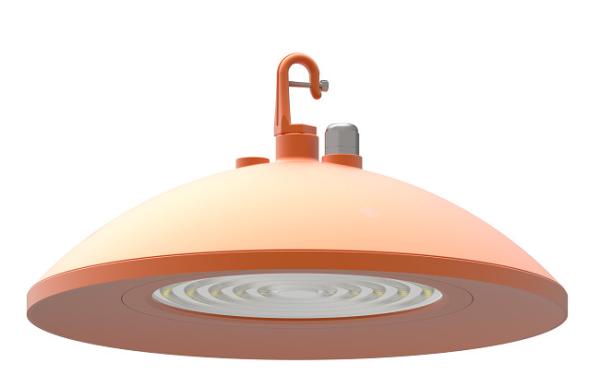

0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
Specifications
Brand Name :
SUNLUXX
Model Number :
CHBL-120
Certification :
ETL, CE,SAA,ROHS,NSF
Place of Origin :
China
MOQ :
1
Price :
US$100.87/PCS unit for EXW item
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
48cm*48cm*22cm/1pcs
Wattage :
120W
Color Temperature :
4000K 5000K 5700K 3000K
Driver :
MOSO brand
Input Voltage :
100-277VAC,50/60Hz
Dimmable :
2 in 1 dimming (PWM, 0-10V)
Lifespan :
50000hrs
Description

Dimmable 0-10V 4000K 120W LED Food Processing Light Hook Mount For Meaty Shop Lighting

LED Food Processing Light is waterproof, and have an IP67 rating.We can offer private custom:lampshade color choice:Red,Blue,Gray.

We can also make it according to the color you like base on minimum order quantity 500PCS.

Features of LED Food Processing Light

1. These products have got NSF IP69K IK08 certification

2. This product is mainly be used in clean food/ pharmaceutical and any other manufacture plant
3. The product design with no screw on the front. So there is almost no dusty in smooth back, it is easy for clean and no
screw or any other small part dropped when is cleaned by high-press water gun.

4. The product surface coating get REACH/ROHS/HALOGEN test report by SGS

5. The structure of lamp is made of aluminum alloy; the lens is made of optical grade material of Mitsubishi Corporation of Japan.

The color of lamp is orange RAL2004

6. The lens has been applied for patent and patent filings by Chinese custom,the record number is P2018-72651

Item CHBL-100 CHBL-120 CHBL-150
Power 100W 120W 150W
Input Voltage 90-305VAC 90-305VAC 90-305VAC
Input Current 0.47A@220VAC 0.57A@220VAC 0.68A@220VAC
PF >0.90@220VAC >0.90@220VAC >0.90@220VAC

Dimming Option

MOSO

 2 in 1 dimming (PWM, 0-10V) 2 in 1 dimming (PWM, 0-10V) 2 in 1 dimming (PWM, 0-10V)

Dimming Option

Meanwell

 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali

Ra>80

Luminous Flux

 14000Lm 16800Lm 21000Lm

Ra>70

Luminous Flux

 16000Lm 19200Lm 24000Lm
LED Brand Cree SMD 3030 / LUMILEDS 3030 Cree SMD 3030 / LUMILEDS 3030 Cree SMD 3030 / LUMILEDS 3030
Beam Angle 60°90°120° 60°90°120° 60°90°120°
Operation Temp -40℃ ~ +45℃ -40℃ ~ +45℃ -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃ -40℃ ~ +85℃ -40℃ ~ +85℃
Lifespan 25℃ 50000Hours 25℃ 50000Hours 25℃ 50000Hours
IP rating IP69K IP69K IP69K
IK rating IK10 IK10 IK10
Certificates ETL, CE,SAA,ROHS,NSF ETL, CE,SAA,ROHS,NSF ETL,CE,SAA,ROHS,NSF
Lamp Body Color Orange( RAL2004) Orange( RAL2004) Orange( RAL2004)
Product Size(mm) 400*400*197 400*400*197 400*400*197
Net Weight(kg) 5.6kg 5.6kg 5.6kg
Packing Size(mm) 480*480*220 480*480*220 480*480*220
Gross Weight(kg) 6.8kg 6.8kg 6.8kg
Installation Way Hook Mount/Pendant Mount Hook Mount/Pendant Mount Hook Mount/Pendant Mount

IP69K IP67 Water Testing

0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights

0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights

FAQ for LED Food Processing Light

Q1. How many kinds of LED products in your factory?

A1: We have large range of LED products,Including LED High Bay Light (HBL,CHBL,BHB series),LED Flood Light (Slim FL3A series and FAL series),LED Canopy,LED Parking Lot,LED Post Top and LED Corn cob Lights.

Q2. How about the lead time for this LED Food Processing Light?

A2: Sample needs 3-6 days, mass production time needs 2-3 weeks based on the quantity

Q3. How can i pay for my order?
A3: We accept following payment: T/T (bank transfer),Western Union,Paypal transfer.Normally,For samples order below total amount US$1000.00,We advice customers using Paypal transfer.Above total amount US$1001.00,T/T (bank transfer) is much better for us.
About the payment for bulk quantity order,Usually we ask for 30% deposit before the production and 70% balance paid before the shipping.

Sunluxx Warranty

1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.


3. Warranty does not cover damages caused by abuse, misuse, improper environmental conditions, natural disaster,wrong installation,etc.

We are so happy to serve you!

Applications

0 - 10V Dimmable LED High Bay Warehouse Lighting Fixture , Hook Mount LED Lights
