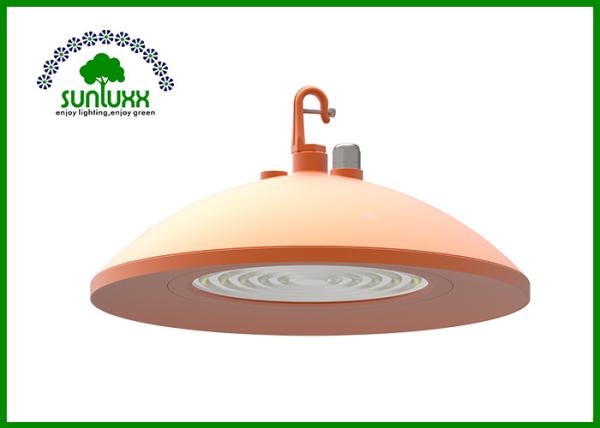

Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
Specifications
Brand Name :
SUNLUXX
Model Number :
CHBL-100
Certification :
ETL, CE,SAA,ROHS,NSF
Place of Origin :
China
MOQ :
1
Price :
US$114.00/PCS unit for EXW item
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
48cm*48cm*22cm/1pcs
Wattage :
100W
Color Temperature :
4000K 5000K 5700K 3000K
Beam Angle :
60°90°120°
Input Voltage :
100-277VAC,50/60Hz
Luminous Flux :
16,000Lm
LED Driver :
Meanwell
Description

100W 16,000Lm Food Grade LED UFO High Bay For Meaty Manufacturing

Features of LED Wash Down Industrial UFO High Bay Fixture

1. Compact and Fashion design

2. Luminous efficacy 170 lm/W@90°Beam Angle, high power factor
3. Uniform light distribution

4. The first patented proprietary optics and higher transmittance 95% water wave lens

5. Surface anti-aging electrostatic spray-paint processing, ensure longer lifespan

6. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.

Item CHBL-100 CHBL-120 CHBL-150
Power 100W 120W 150W
Input Voltage 90-305VAC 90-305VAC 90-305VAC
Input Current 0.47A@220VAC 0.57A@220VAC 0.68A@220VAC
PF >0.90@220VAC >0.90@220VAC >0.90@220VAC

Dimming Option

MOSO

 2 in 1 dimming (PWM, 0-10V) 2 in 1 dimming (PWM, 0-10V) 2 in 1 dimming (PWM, 0-10V)

Dimming Option

Meanwell

 3 in 1 dimming (PWM, 1-10V, Resistor) / Dali 3 in 1 dimming (PWM, 1-10V, Resistor) / Dali 3 in 1 dimming (PWM, 1-10V, Resistor) / Dali

Ra>80

Luminous Flux

 14000Lm 16800Lm 21000Lm

Ra>70

Luminous Flux

 16000Lm 19200Lm 24000Lm
LED Brand Cree SMD 3030 / LUMILEDS 3030 Cree SMD 3030 / LUMILEDS 3030 Cree SMD 3030 / LUMILEDS 3030
Beam Angle 60°90°120° 60°90°120° 60°90°120°
Operation Temp -40℃ ~ +45℃ -40℃ ~ +45℃ -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃ -40℃ ~ +85℃ -40℃ ~ +85℃
Lifespan 25℃ 50000Hours 25℃ 50000Hours 25℃ 50000Hours
IP rating IP69K IP69K IP69K
IK rating IK10 IK10 IK10
Certificates ETL, CE,SAA,ROHS,NSF ETL, CE,SAA,ROHS,NSF ETL,CE,SAA,ROHS,NSF
Lamp Body Color Orange( RAL2004) Orange( RAL2004) Orange( RAL2004)
Product Size(mm) 400*400*197 400*400*197 400*400*197
Net Weight(kg) 5.6kg 5.6kg 5.6kg
Packing Size(mm) 480*480*220 480*480*220 480*480*220
Gross Weight(kg) 6.8kg 6.8kg 6.8kg
Installation Way Hook Mount/Pendant Mount Hook Mount/Pendant Mount Hook Mount/Pendant Mount

Product Details

Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light

Applications

Food Grade LED High Bay Warehouse Lighting Fixture , UFO LED High Bay Light
