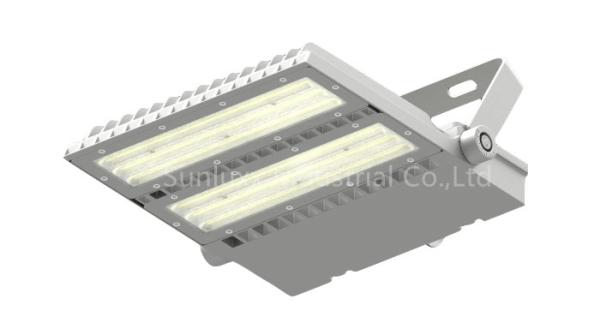

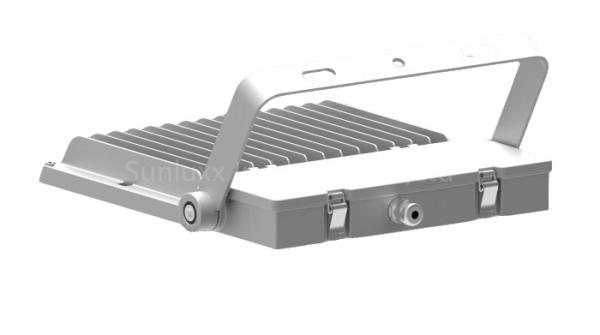

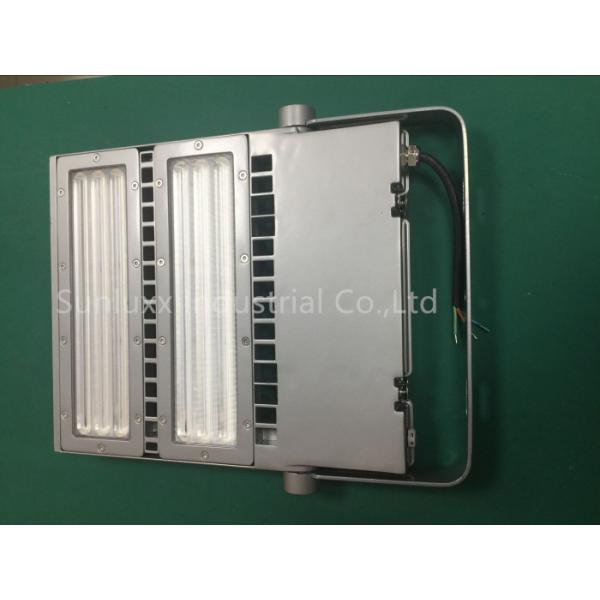

EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-240W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$201.79 / PC, EXW Price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 Pieces per Month
Delivery Time :
3-5 working days
Packaging Details :
54cm*46cm*19cm/2pcs
Power: :
240W
Luminous Flux: :
33600lm
Voltage :
200-305VAC
LED Brand :
Nichia 3030
Protection level :
IP66
IK: :
10
DC Output Voltage: :
48V
DC Output Current: :
4.65A
Product Size(mm): :
441*373*50
Mounting Method: :
Bracket Mount
Description

EU 240W LED Basketball Stadium flood light 33600lm Outdoor High Pole Lighting, 200 - 305VAC



Features

1. 5 years warranty.

2. NICHIA SMD LED chip + MEANWELL driver, high lumen of 140lm/W.

3. 200-305VAC, 347V, Europe standard wide voltage range.

4. Beam angle: ANB, AWB, SNB, SWB

5. Die cast Aluminum housing provide better heat dissipation solution, long life, low failure, no glare.

6. IP66 waterproof for outdoor lighting, IK10 impact resistance, strong and stable.

7. Adjustable bracket, easy installation, satisfy different applications.

8. Electrostatic protective powder coating for lasting lamp appearance.

9. Strong wind resistance, high vibration resistance.

Product Details

Power 240W
Input Voltage 90 - 305VAC
Input Current 1.10A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 4.65A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K Typical Flux 31200lm±10%
Efficiency 130lm/W±10%
Ra>70,5000K Typical Flux 33600lm±10%
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 441*373*50
Net Weight(kg) 6.37
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount


EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting



Beam Angle

EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
Accessories
EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting

Light Distribusion Curve


EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting


Installation Manual

EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
Applications

Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Stadium Lighting

EU 240W LED Stadium Flood Light 33600LM 200 - 305V AC For Outdoor High Pole Lighting
